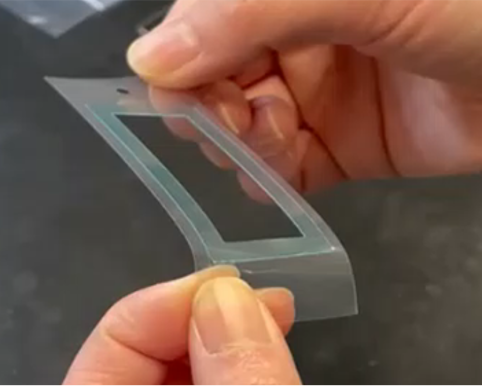

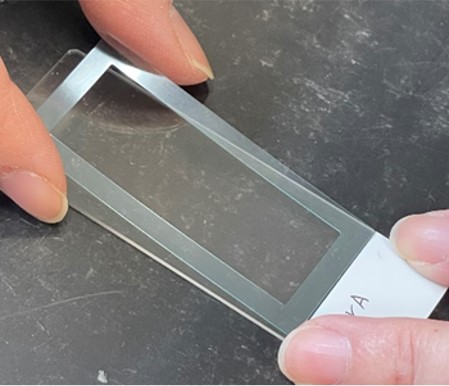

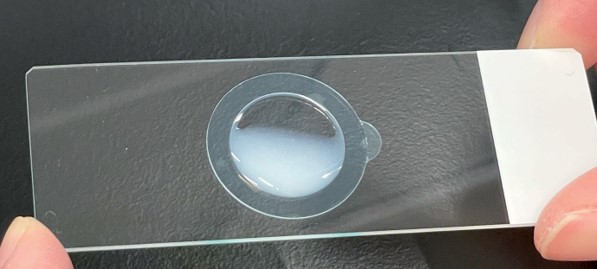

CS IHC-Fencing Seal
Leak-Resistant Seal for immunostaining / Easy! Just stick it on
Unlike liquid pen-type applicators such as PAP pens, there is no need to worry about the technique of application, drying time, or liquid breakage. CS IHC-Fencing Seal is a water-repellent seal that can surround specimens such as tissue sections on slides, preventing the mixing or leaking of reagents and buffers such as antibody solutions during staining procedures.
 |
 |
 |
 |
Features
-
Ready-to-use
-
Quick and easy, just stick it on
-
Possible to reapply
-
Enables applying antibody solutions without wiping off water
-
Retains adhesion at high temperature (70 degree C).

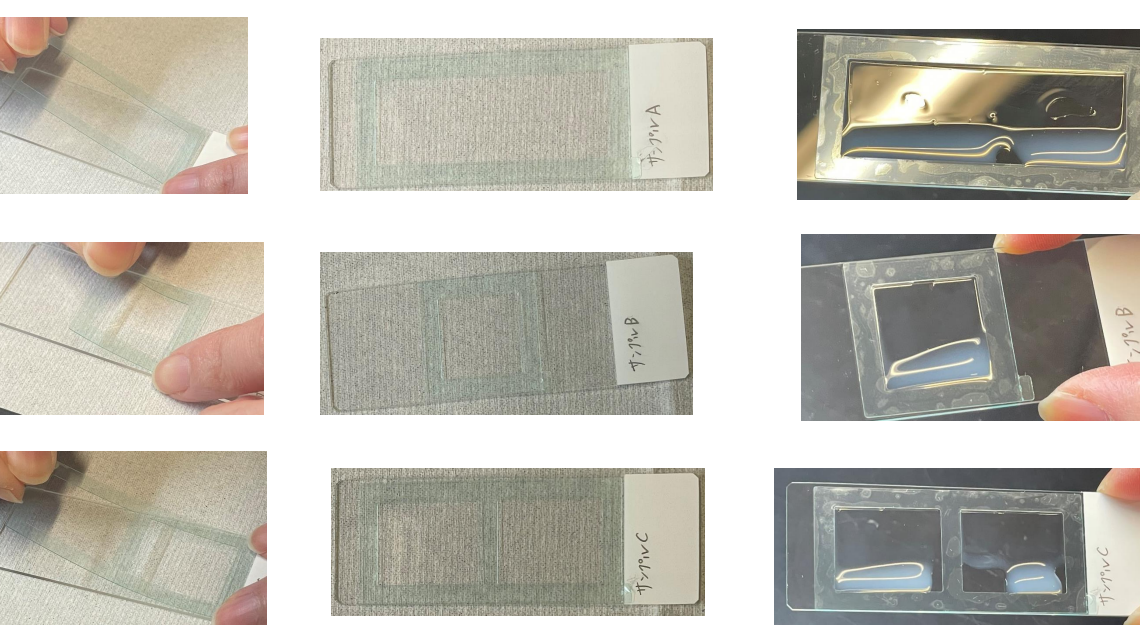

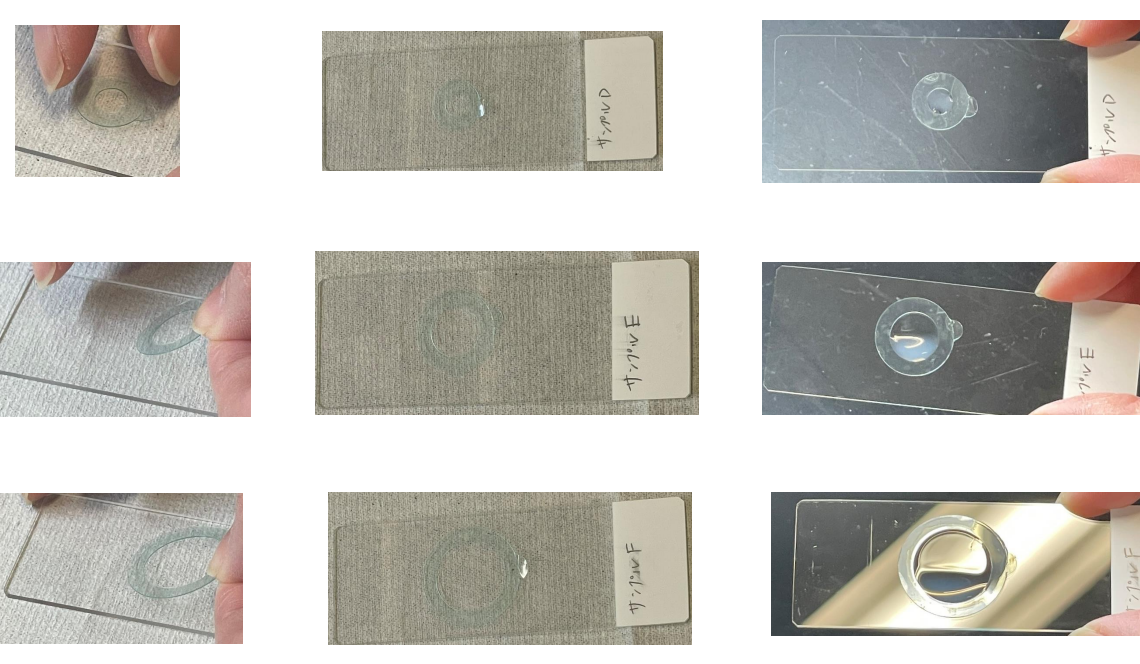

6 types to choose from
| Type | Outside dim. (Outside dia.) | Inside dim. (Inside dia.) | Height |
| A | 55 x 25 mm | 47 x 17 mm | 0.155 mm |
| B | 25 x 25 mm | 17 x 17 mm | 0.155 mm |
| C | 55 x 25 mm | 21.5 x 17 mm | 0.155 mm |
| D | ɸ11 | ɸ5 | 0.155 mm |
| E | ɸ16 | ɸ10 | 0.155 mm |
| F | ɸ21 | ɸ15 | 0.155 mm |
Applications; Compatible with microscope glass slide
Material: PET (low adhesion tape)

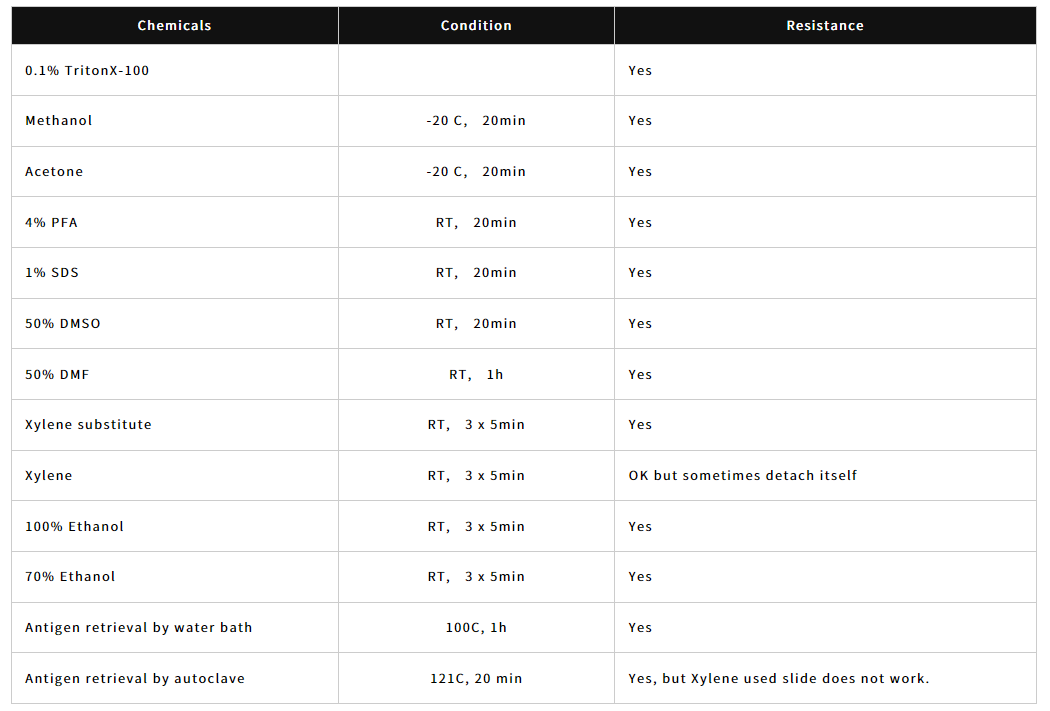

Chemical Resistance Chart
Ordering Information
| Product | Description | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|---|
| CS IHC-Fencing Seal A type | Outside dim.: 55 x 25 mm, Inside dim.: 47 x 17 mm, Height: 0.155 mm |
RT | R-CSC091-01 | 180 pieces | 172.00 | Buy |
| CS IHC-Fencing Seal B type | Outside dim.: 25 x 25 mm, Inside dim.: 17 x 17 mm, Height: 0.155 mm |
RT | R-CSC092-01 | 270 pieces | 172.00 | Buy |
| CS IHC-Fencing Seal C type | Outside dim.: 55 x 25 mm, Inside dim.: 21.5 x 17 mm, Height: 0.155 mm |
RT | R-CSC093-01 | 180 pieces | 172.00 | Buy |
| CS IHC-Fencing Seal D type | Outside diam.: ɸ11, Inside diam.: ɸ5, Height: 0.155 mm |
RT | R-CSC094-01 | 270 pieces | 172.00 | Buy |
| CS IHC-Fencing Seal E type | Outside diam.: ɸ16, Inside diam.: ɸ10, Height: 0.155 mm |
RT | R-CSC095-01 | 270 pieces | 172.00 | Buy |
| CS IHC-Fencing Seal F type | Outside diam.: ɸ21, Inside diam.: ɸ15, Height: 0.155 mm |
RT | R-CSC096-01 | 270 pieces | 172.00 | Buy |
Trial Packaging (30 pieces)
| Product | Description | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|---|
| CS IHC-Fencing Seal A type | Outside dim.: 55 x 25 mm, Inside dim.: 47 x 17 mm, Height: 0.155 mm |
RT | R-CSC091-02 | 30 pieces | 43.00 | Buy |
| CS IHC-Fencing Seal B type | Outside dim.: 25 x 25 mm, Inside dim.: 17 x 17 mm, Height: 0.155 mm |
RT | R-CSC092-02 | 30 pieces | 29.00 | Buy |
| CS IHC-Fencing Seal C type | Outside dim.: 55 x 25 mm, Inside dim.: 21.5 x 17 mm, Height: 0.155 mm |
RT | R-CSC093-02 | 30 pieces | 43.00 | Buy |
| CS IHC-Fencing Seal D type | Outside diam.: ɸ11, Inside diam.: ɸ5, Height: 0.155 mm |
RT | R-CSC094-02 | 30 pieces | 29.00 | Buy |
| CS IHC-Fencing Seal E type | Outside diam.: ɸ16, Inside diam.: ɸ10, Height: 0.155 mm |
RT | R-CSC095-02 | 30 pieces | 29.00 | Buy |
| CS IHC-Fencing Seal F type | Outside diam.: ɸ21, Inside diam.: ɸ15, Height: 0.155 mm |
RT | R-CSC096-02 | 30 pieces | 29.00 | Buy |
30 pieces of trial packaging are available!
