SunShell RP-AQUA (160Å)

SunShell HPLC columns are manufactured using innovative core shell particle technology that provides significantly increased column efficiency and chromatographic resolution without the high back pressure seen in sub-2 µm columns.

Features

- 2.6 µm core shell particle with 0.5 µm porous silica layer
- Provides the same high efficiency and high speed as sub-2 µm
- Less than half the backpressure of sub-2 µm
- Up to 100 times higher loading capacity compared to other core shell materials
- Improved pH stability from 1.0 to 10 (C18)

SunShell HPLC Columns are manufactured by ChromaNik Technologies, Inc.

Physical Characteristics

 Stationary PhaseParticle SizePore SizeSurface AreaCarbon ContentpH Range
RP-AQUA C28 2.6 µm 160Å 90 m²/g Approx. 4% 2 - 8



Schematic of Diffusion Paths

2.6 µm core shell particle provides the same diffusion width as 2.0 µm totally porous particle.

Diffusion of  sample in core shell and totally porous silica

for aqueous conditions

SunShell RP-AQUA is a reversed phase Core Shell column designed specifically for aqueous mobile phase conditions. It offers excellent retentions of polar compounds and superior reproducibility in 100 % aqueous mobile phase.

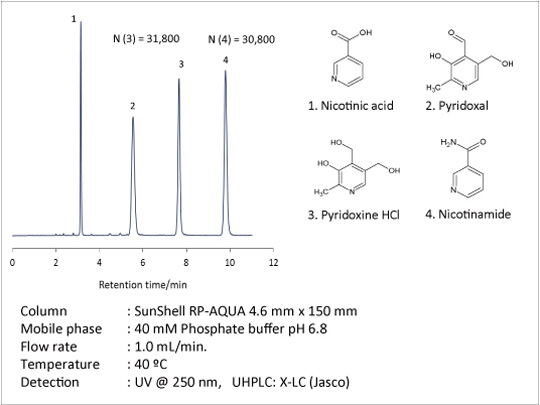

Application Data: Water-soluble vitamins

Column	: SunShell RP-AQUA 4.6 mm x 150 mm
Mobile phase	: 40 mM Phosphate buffer pH 6.8
Flow rate	: 1.0 mL/min.
Temperature	: 40 °C
Detection	: UV @ 250 nm,   UHPLC: X-LC (Jasco)
1. Nicotinic acid, 2. Pyridoxal, 3. Pyridoxine HCl, 4. Nicotinamide

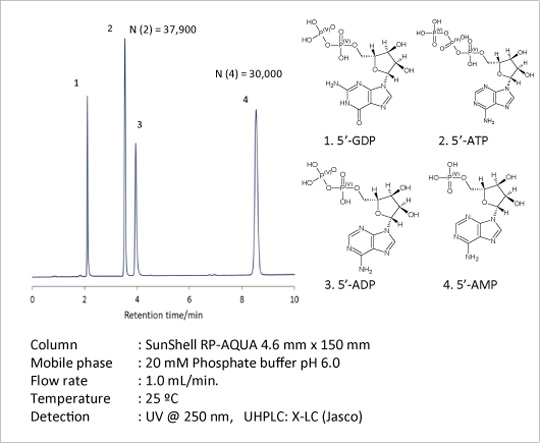

Application Data: Nucleotides

Column	: SunShell RP-AQUA 4.6 mm x 150 mm
Mobile phase	: 20 mM Phosphate buffer pH 6.0
Flow rate	: 1.0 mL/min.
Temperature	: 25 °C
Detection	: UV @ 250 nm,   UHPLC: X-LC (Jasco)
5'-GDP, 5'-ATP, 5'-ADP, 5'-AMP

Ordering Information

SunShell RP-AQUA
Product Cat.No. PKG Size Price(US$)
SunShell RP-Aqua, 2.6µm (1.0 mmID x 50 mm) CR6141 1 pkg 635.00 Buy
SunShell RP-Aqua, 2.6µm (1.0 mmID x 100 mm) CR6161 1 pkg 702.00 Buy
SunShell RP-Aqua, 2.6µm (1.0 mmID x 150 mm) CR6171 1 pkg 740.00 Buy
SunShell RP-Aqua, 2.6µm (2.1 mmID x 30 mm) CR6931 1 pkg 504.00 Buy
SunShell RP-Aqua, 2.6µm (2.1 mmID x 50 mm) CR6941 1 pkg 513.00 Buy
SunShell RP-Aqua, 2.6µm (2.1 mmID x 75 mm) CR6951 1 pkg 551.00 Buy
SunShell RP-Aqua, 2.6µm (2.1 mmID x 100 mm) CR6961 1 pkg 614.00 Buy
SunShell RP-Aqua, 2.6µm (2.1 mmID x 150 mm) CR6971 1 pkg 653.00 Buy
SunShell RP-Aqua, 2.6µm (3.0 mmID x 30 mm) CR6331 1 pkg 504.00 Buy
SunShell RP-Aqua, 2.6µm (3.0 mmID x 50 mm) CR6341 1 pkg 513.00 Buy
SunShell RP-Aqua, 2.6µm (3.0 mmID x 75 mm) CR6351 1 pkg 551.00 Buy
SunShell RP-Aqua, 2.6µm (3.0 mmID x 100 mm) CR6361 1 pkg 614.00 Buy
SunShell RP-Aqua, 2.6µm (3.0 mmID x 150 mm) CR6371 1 pkg 653.00 Buy
SunShell RP-Aqua, 2.6µm (4.6 mmID x 30 mm) CR6431 1 pkg 504.00 Buy
SunShell RP-Aqua, 2.6µm (4.6 mmID x 50 mm) CR6441 1 pkg 513.00 Buy
SunShell RP-Aqua, 2.6µm (4.6 mmID x 75 mm) CR6451 1 pkg 605.00 Buy
SunShell RP-Aqua, 2.6µm (4.6 mmID x 100 mm) CR6461 1 pkg 675.00 Buy
SunShell RP-Aqua, 2.6µm (4.6 mmID x 150 mm) CR6471 1 pkg 717.00 Buy
