Mesh seal for 5 mL, 15 mL and 50 mL tube

Cell filtration seal / Great for flow cytometer users

To filter cells just by putting the mesh seal on tube!

Features

  • Can filter cells just by putting it on 5 mL, 15 mL and 50 mL tubes
  • Has a tab, making it easy to stick
  • Available mesh sizes are 30 μm (gray), 70 μm (blue) and 100 μm (red)
  • Ideal for those who want to keep the cost of experiment low

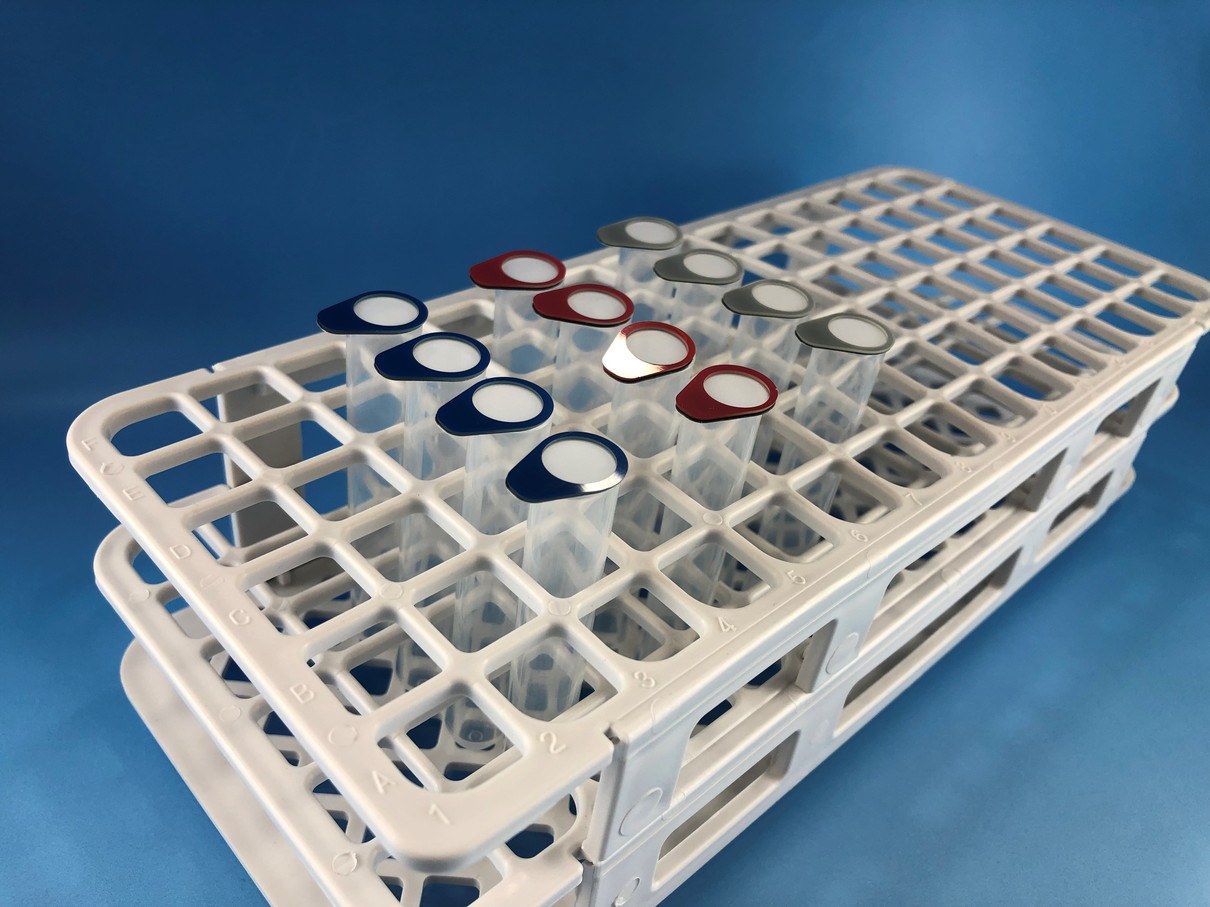

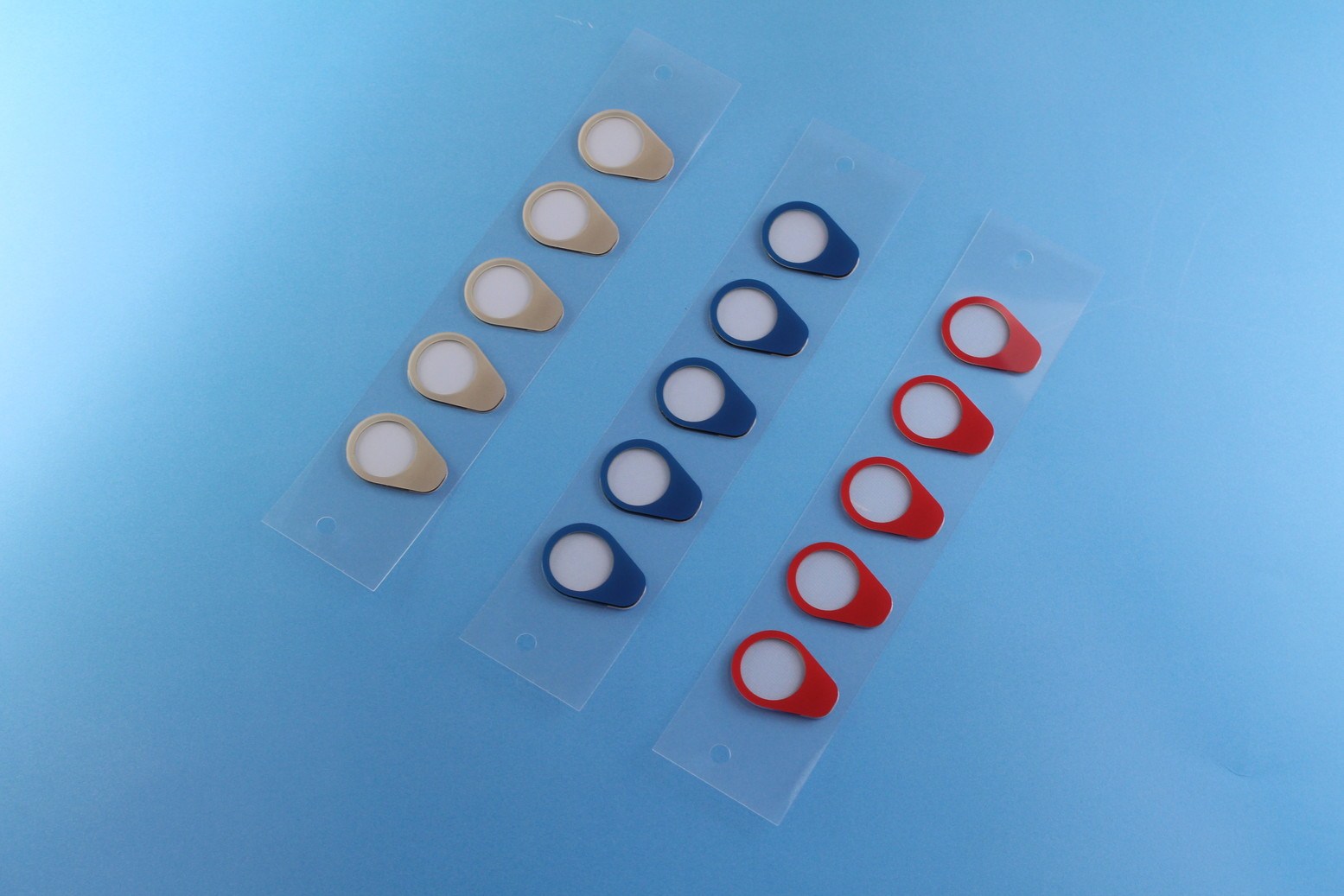

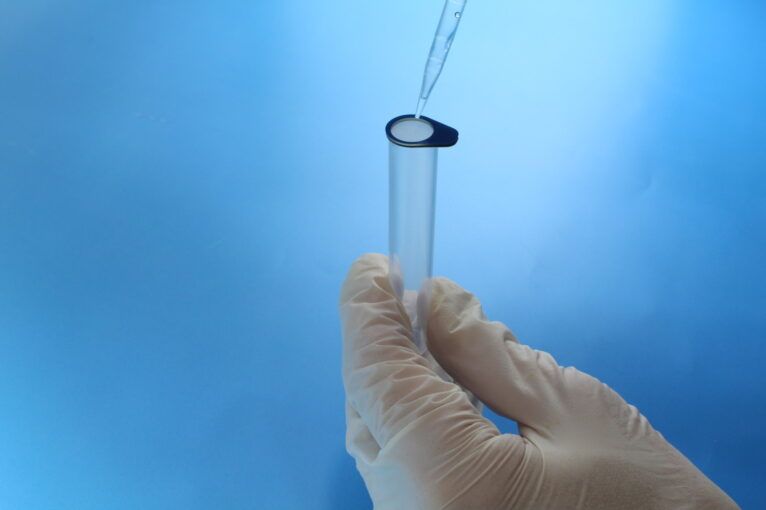

5 mL Mesh Seal

Product Name
Mesh seal for 5 mL tube
Application
Compatible with 5 mL tube (outer diameter: 12 mm)
Material
Sheet: PET
Mesh: Polyester fiber
Size
17.25 mm x 12.5 mm (Mesh: Φ10 mm)
Mesh size: 30 µm (gray), 70 µm (bule), 100 µm (red)

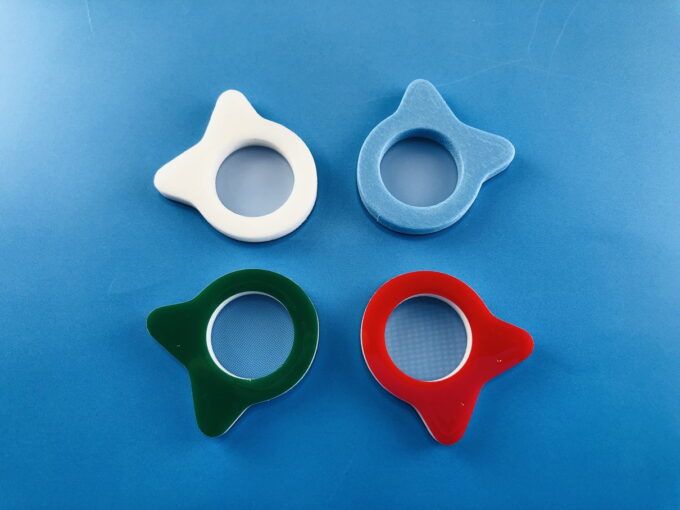

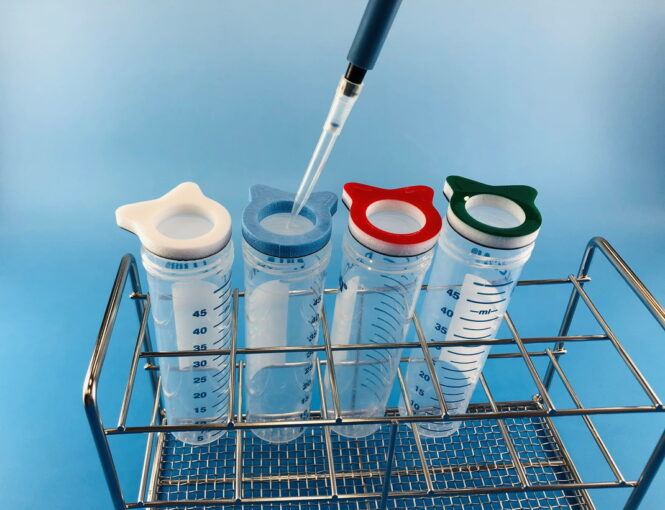

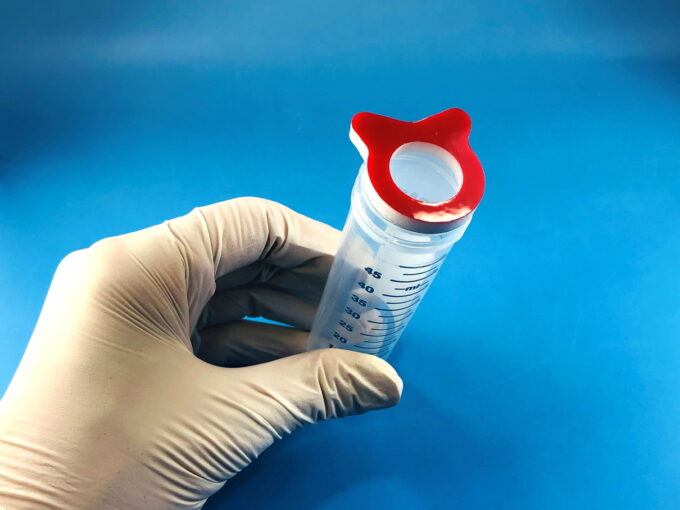

50 mL Mesh Seal

Product Name
Mesh seal for 50 mL tube
Application
Compatible with 50 mL tube (outer diameter: 30 mm)
Material
Sheet: PET
Mesh: Polyester fiber
Mesh Size
30 µm (gray), 70 µm (bule), 100 µm (red), 300 µm (green)





Application Data

Filtration of HEK293 Cells with the Mesh Seal
Before cell filtration

After cell filtration



Ordering Information

for 5 ml tube
Product Storage Cat.No. PKG Size Price
Mesh Seal for 5 ml tube, 30 µm (100 pieces) RT R-CSC022-02 100 pieces 62.00
Buy
Mesh Seal for 5 ml tube, 30 µm (500 pieces) RT R-CSC022-01 500 pieces 233.00
Buy
Mesh Seal for 5 ml tube, 70 µm (100 pieces) RT R-CSC026-02 100 pieces 62.00
Buy
Mesh Seal for 5 ml tube, 70 µm (500 pieces) RT R-CSC026-01 500 pieces 233.00
Buy
Mesh Seal for 5 ml tube, 100 µm (100 pieces) RT R-CSC027-02 100 pieces 62.00
Buy
Mesh Seal for 5 ml tube, 100 µm (500 pieces) RT R-CSC027-01 500 pieces 233.00
Buy
for 15 ml tube
Product Storage Cat.No. PKG Size Price
Mesh Seal for 15 ml tube, 30 µm (50 pieces) RT R-CSC071-012 50 pieces 55.00
Buy
Mesh Seal for 15 ml tube, 70 µm (50 pieces) RT R-CSC072-012 50 pieces 55.00
Buy
Mesh Seal for 15 ml tube, 100 µm (50 pieces) RT R-CSC073-012 50 pieces 55.00
Buy
for 50 ml tube
Product Storage Cat.No. PKG Size Price
Mesh Seal for 50 ml tube, 30 µm (30 pieces) RT R-CSC065-01 30 pieces 48.00
Buy
Mesh Seal for 50 ml tube, 70 µm (30 pieces) RT R-CSC066-01 30 pieces 48.00
Buy
Mesh Seal for 50 ml tube, 100 µm (30 pieces) RT R-CSC067-01 30 pieces 48.00
Buy
Mesh Seal for 50 ml tube, 300 µm (30 pieces) RT R-CSC068-01 30 pieces 48.00
