After cell filtration
Mesh seal for 5 mL, 15 mL and 50 mL tube
Cell filtration seal / Great for flow cytometer users

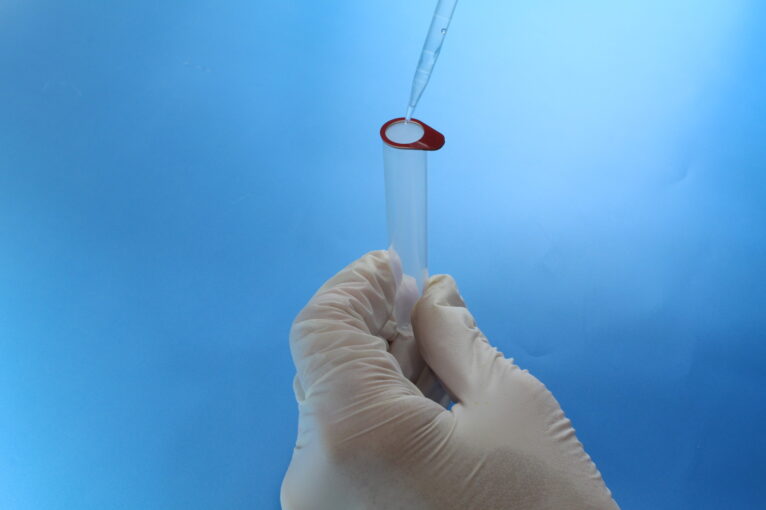

To filter cells just by putting the mesh seal on tube!
Features
- Can filter cells just by putting it on 5 mL, 15 mL and 50 mL tubes
- Has a tab, making it easy to stick
- Effectively removes cell clumps and debris, supporting cell culture, counting, and cytometric analysis

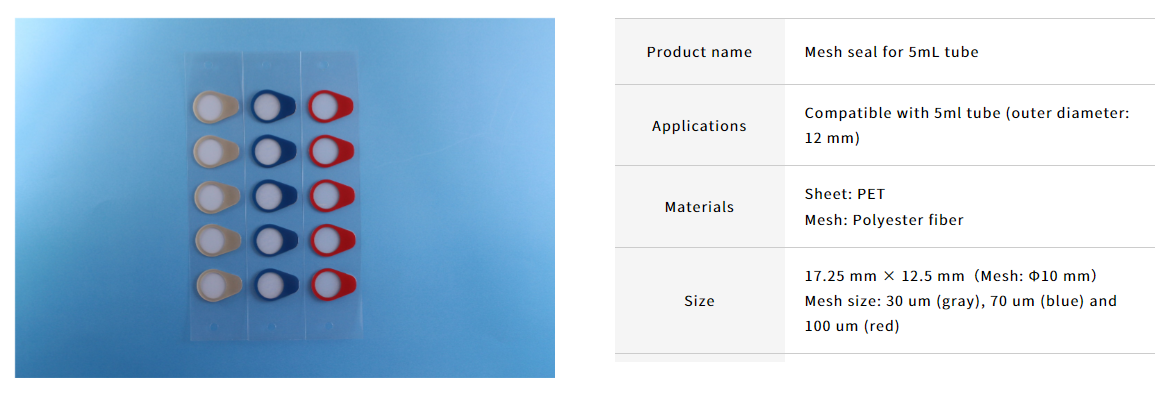

5 mL Mesh Seal
Mesh seal for 5 mL tube provides fast and easy sample filtration opportunity.
- Remove cell aggregate, cell clumps, and debris.
- Compatible with both 1.5 mL and 5 mL centrifuge tubes.
- Save your lab and bench spaces – No 3D cup-like structure, No big case or tray is used
|
Product Name
|
Mesh seal for 5 mL tube
|
| Compatibility | 5 mL centrifuge tube (outer diameter: 12 mm) and 1. 5 mL tube |
|
Material
|
Sheet: PET
Mesh: Polyester fiber
|
|
Size
|
17.25 mm x 12.5 mm (Mesh: Φ10 mm)
Mesh size: 30 um (gray), 70 um (blue) and 100 um (red)
|
|
Sterilization
|
Gamma-irradiation |

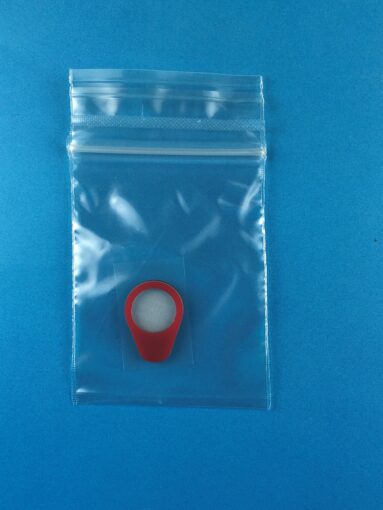

Package- Five seals in one slip or indivisually packed

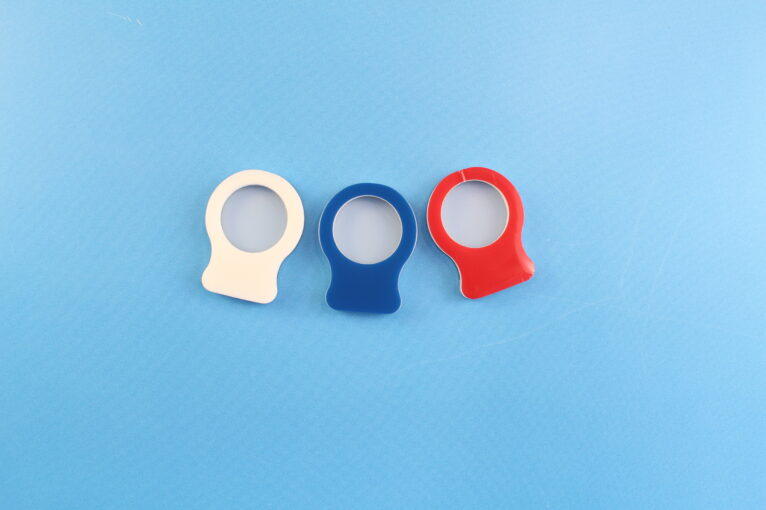

15 mL Mesh Seal
Mesh seal for 15 mL tube is a strip type cell strainer, which provides rapid and easy filtration to dissociate clumping cells and remove debris.
- Useful for the sample preparation prior to flow cytometry analysis, cell cuture and etc.
- The tab on the edge supports easier attachment and removal
- A label-like shape, in contrast to a cup-like 3D form, helps save space in your lab
|
Product Name
|
Mesh seal for 15 mL tube
|
|
Compatibility
|
15 mL centrifuge tube (outer diameter: 17 mm) |
|
Material
|
Sheet: PET
Mesh: Polyester fiber
|
|
Mesh Size
|
30 μm (white), 70 μm (blue), and 100 μm (red) |
|
Sterilization
|
Gamma-irradiation |
50 mL Mesh Seal
Mesh seal for 50 mL tube is a strip type cell strainer, which provides rapid and easy filtration to dissociate clumping cells and remove debris.
- Useful for the sample preparation prior to flow cytometry analysis, cell cuture and etc.
- The tab on the edge supports easier attachment and removal
- A label-like shape, in contrast to a cup-like 3D form, helps save space in your lab
|
Product Name
|
Mesh seal for 50 mL tube
|
|
Compatibility
|
Compatible with 50 mL tube (outer diameter: 30 mm)
|
|
Material
|
Sheet: PET
Mesh: Polyester fiber
|
|
Mesh Size
|
30 μm (white), 70 μm (blue), 100 μm (red) and 300 μm (green) |
|
Sterilization
|
Gamma-irradiation |
Application Data
Filtration of HEK293 Cells with the Mesh Seal
| Before cell filtration |
|
 |
 |
Ordering Information
for 15 ml tube
| Product | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| Mesh Seal for 15 ml tube, 30 μm (individually packaged) | RT | R-CSC071-012 | 50 pieces | 55.00 | Buy |
| Mesh Seal for 15 ml tube, 70 μm (individually packaged) | RT | R-CSC072-012 | 50 pieces | 55.00 | Buy |
| Mesh Seal for 15 ml tube, 100 μm (individually packaged) | RT | R-CSC073-012 | 50 pieces | 55.00 | Buy |
for 5 ml tube
| Product | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| Mesh Seal for 5 ml Tube, 30 μm (individually packaged) | RT | R-CSC022-022 | 100 pieces | 79.00 | Buy |
| Mesh Seal for 5 ml Tube, 30 μm (individually packaged) | RT | R-CSC022-012 | 500 pieces | 315.00 | Buy |
| Mesh Seal for 5 ml Tube, 70 μm (individually packaged) | RT | R-CSC026-022 | 100 pieces | 79.00 | Buy |
| Mesh Seal for 5 ml Tube, 70 μm (individually packaged) | RT | R-CSC026-012 | 500 pieces | 315.00 | Buy |
| Mesh Seal for 5 ml Tube, 100 μm (individually packaged) | RT | R-CSC027-022 | 100 pieces | 79.00 | Buy |
| Mesh Seal for 5 ml Tube, 100 μm (individually packaged) | RT | R-CSC027-012 | 500 pieces | 315.00 | Buy |
for 50 ml tube
| Product | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| Mesh Seal for 50 ml Tube, 30 μm (individually packaged) | RT | R-CSC065-014 | 50 pieces | 65.00 | Buy |
| Mesh Seal for 50 ml Tube, 30 μm (individually packaged) | RT | R-CSC065-015 | 100 pieces | 100.00 | Buy |
| Mesh Seal for 50 ml Tube, 70 μm (individually packaged) | RT | R-CSC066-014 | 50 pieces | 65.00 | Buy |
| Mesh Seal for 50 ml Tube, 70 μm (individually packaged) | RT | R-CSC066-015 | 100 pieces | 100.00 | Buy |
| Mesh Seal for 50 ml Tube, 100 μm (individually packaged) | RT | R-CSC067-014 | 50 pieces | 65.00 | Buy |
| Mesh Seal for 50 ml Tube, 100 μm (individually packaged) | RT | R-CSC067-015 | 100 pieces | 100.00 | Buy |
| Mesh Seal for 50 ml Tube, 150 μm (individually packaged) | RT | R-CSC069-014 | 50 pieces | 65.00 | Buy |
| Mesh Seal for 50 ml Tube, 150 μm (individually packaged) | RT | R-CSC069-015 | 100 pieces | 100.00 | Buy |
| Mesh Seal for 50 ml Tube, 300 μm (individually packaged) | RT | R-CSC068-014 | 50 pieces | 65.00 | Buy |
| Mesh Seal for 50 ml Tube, 300 μm (individually packaged) | RT | R-CSC068-015 | 100 pieces | 100.00 | Buy |
