Chamber Slide

Microscopic glass slide with removable chamber

The Chamber Slide allows you to cultivate cells directly on a microscope slide and view cells without any transfer.  2, 4 and 6-wells are available.

Features

  • Individually sterilized
  • Robust gasket to prevent leakage and contamination.
  • No Adhesive
  • Chemical-resistant chamber made of polypropylene.
  • Glass-made slide
Chamber Slide

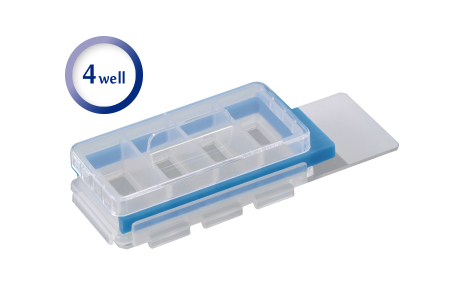

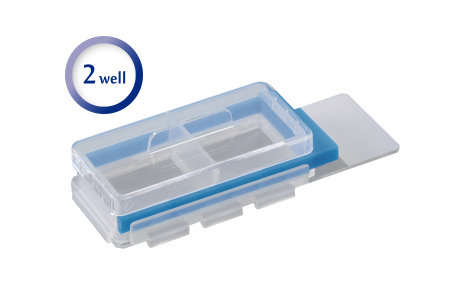

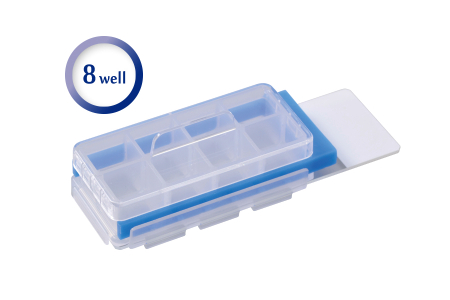

Slide Chamber 8 well Slide Chamber 4 well Slide Chamber 2 well
Culture Area:70 mm²/ well
Appropriate capacity (maximum capacity):
0.35 mL~ 0.6 mL (1.0 mL)
Culture Area:170 mm²/ well
Appropriate capacity (maximum capacity):
0.7 mL~ 1.4 mL (2.0 mL)
Culture Area:400 mm²/ well
Appropriate capacity (maximum capacity):
1.4 mL~ 2.4 mL (4.0 mL)

How to use the chamber slide

how to use the chamber slide 1 how to use the chamber slide 2 how to use the chamber slide 3 how to use the chamber slide 4

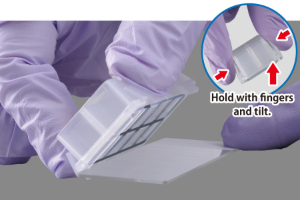

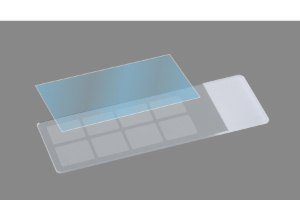

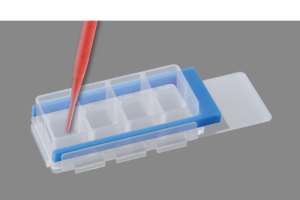

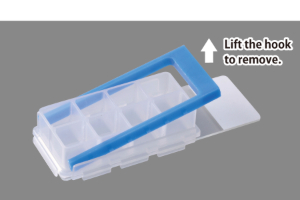

1. Dispense your sample into the wells, then place the cover over it. Incubate and immunostain. 2. After immunostaining, carefully remove the hook. Lift the hook to detach it. 3. Take the chamber off the slide glass by holding it with a finger and tilting it gently. 4. Prepare a separate cover glass to seal the sample properly.

Ordering Information

Chamber Slide
Product Cat.No. PKG Size Price
Slide & Chamber, 2 well, Sterilized 192-002 10 pcs/unit 67.00
Buy
Slide & Chamber, 4 well, Sterilized 192-004 10 pcs/unit 67.00
Buy
Slide & Chamber, 8 well, Sterilized 192-008 10 pcs/unit 67.00
Buy

The shipping method is FedEx Ground or equivalent service.
