Preservation Plate

Plates for Preserving Microbial and Biosources

Preservation plates are designed to store various biological resources, including microbes, blood, and nucleic acids. Thanks to the dried state of the samples on fibrous membranes, long-term storage at room temperature is now feasible.

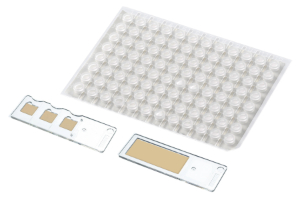

Microbial Preservation Plates (General Bacteria / Fungi)

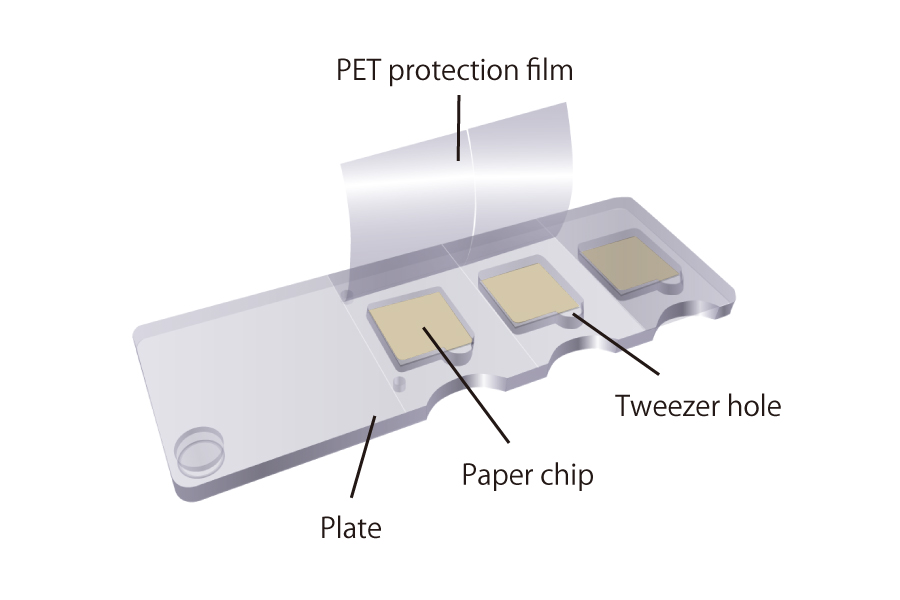

Microbial strains like E.coli and yeast can be preserved in dried form on paper chips that are coated with a preservation agent. Each sample can be individually sealed with an accessory protection seal to prevent contamination and inactivation. This enables compact and efficient preservation at room temperature – it is no longer necessary to use deep freeze or dry ice for transportation.

Individually sterilized 96-well / 3-well / 1-well

Sample volume : 96-well: 5 µL , 3-well: 50 µL, 1-well: 200 µL

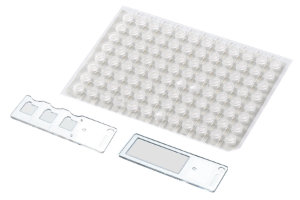

Preservation Plates (Nucleic Acid / Blood)

Preservation Plates allow for the preservation of Bioresources such as nucleic acids (DNA / RNA / oligonucleotide) and blood at room temperature. Simply place the samples onto paper chips and let them dry to complete the preservation process.

96-well / 3-well / 1-well

Sample volume : 96-well: 5 µL , 3-well: 50 µL, 1-well: 200 µL

Nylon for Nucleic Acid (DNA, RNA, oligonucleotide, plasmid, RNA probe, genomic DNA etc.)
Cellulose for Blood, throat swab, feces etc, use cellulose

Microbial Preservation Plates

96-well

Sterilized

Total volume: 5 μL per well.

Size: W 115 mm x D 80 mm.

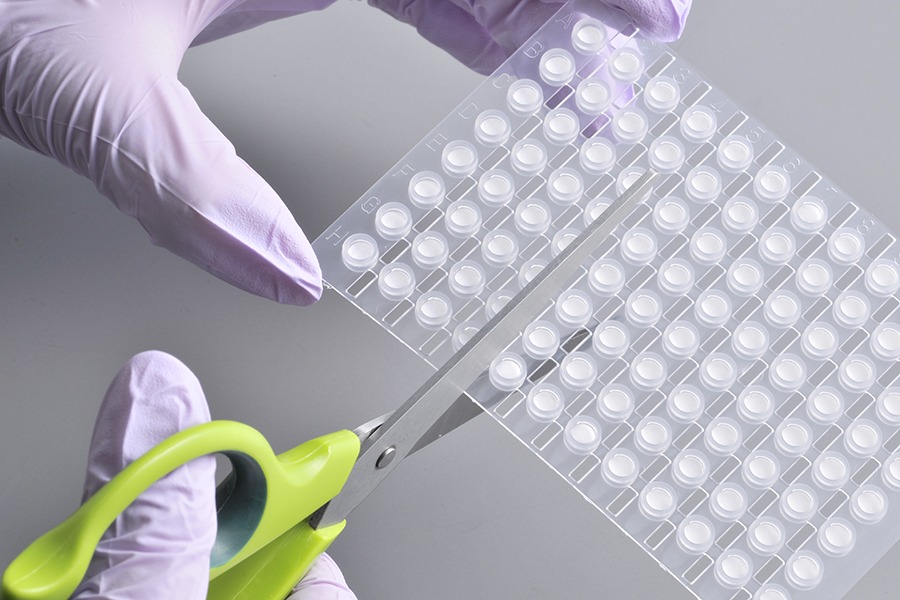

Made from polypropylene, cut to your specifications.

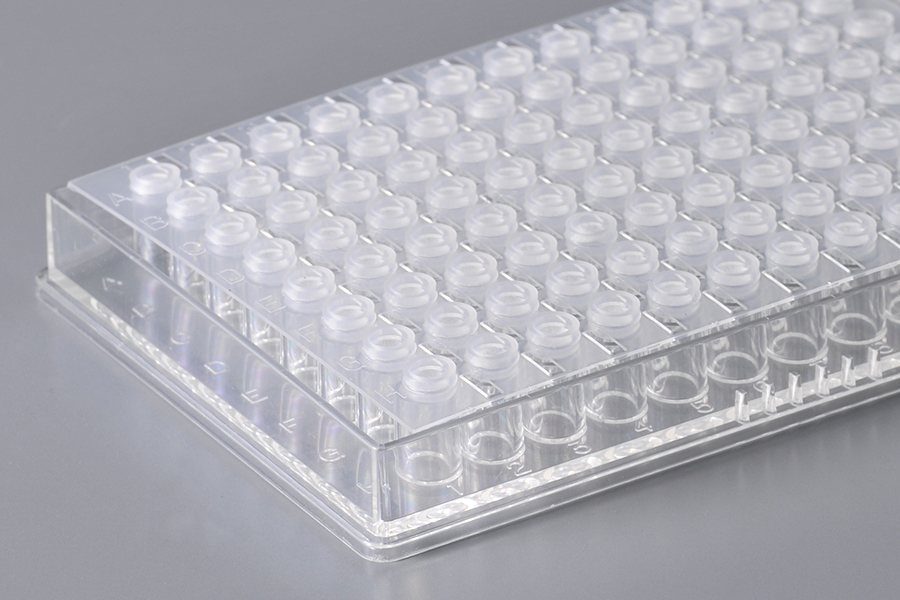

Compatible with a PCR 96-well plate.

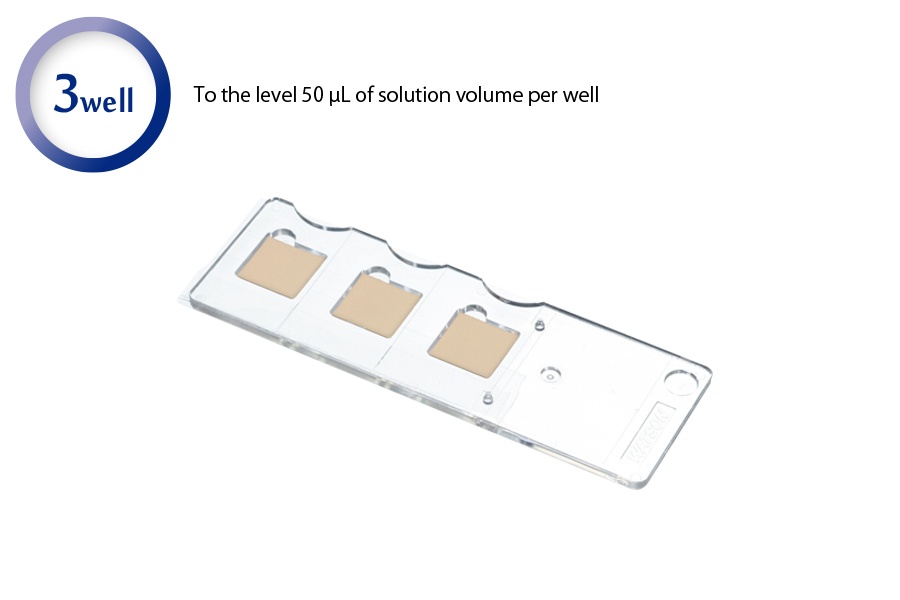

3-well

Sterilized

Total volume: 50 μL per well.

size: W 76 mm x D 26 mm

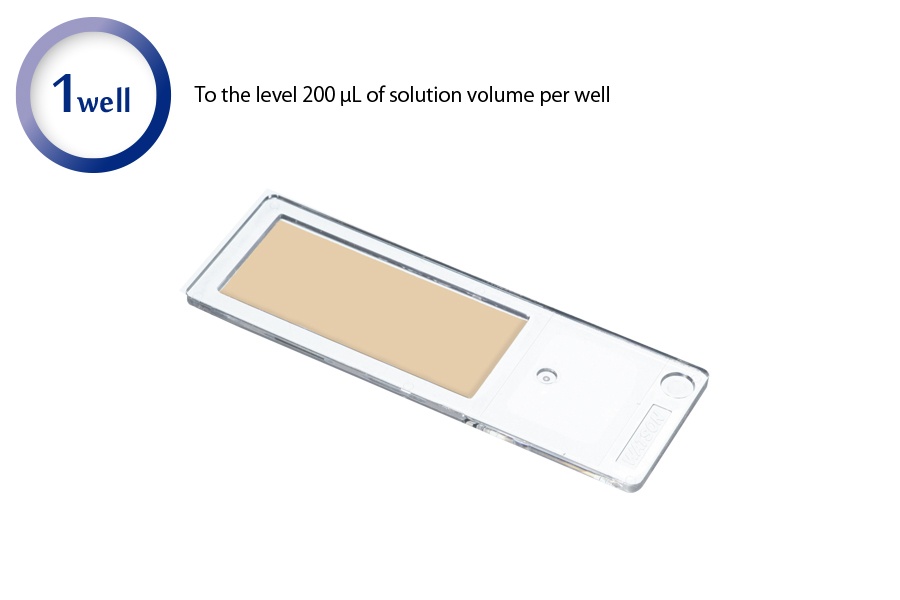

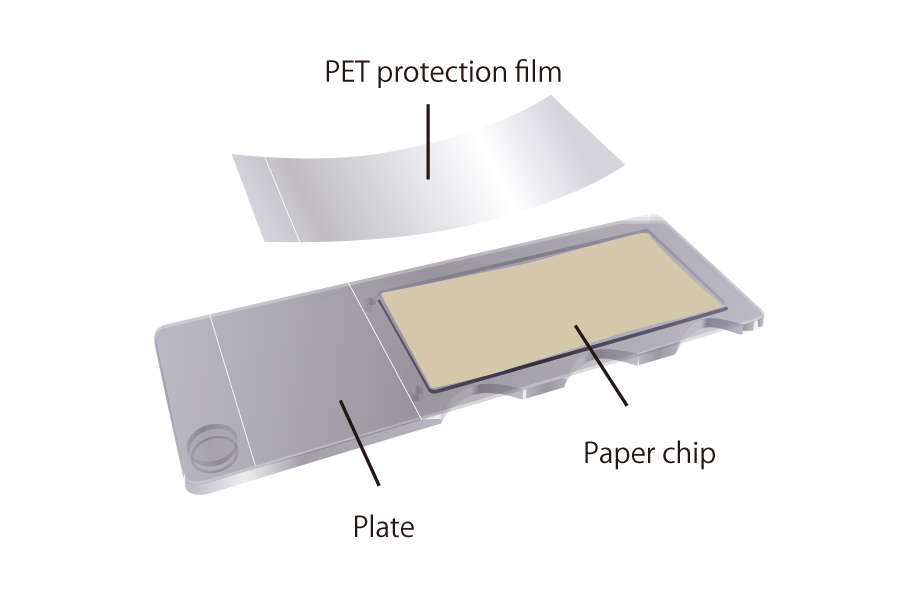

1-well

Sterilized

Total volume: 200 μL per well.

size: W 76 mm x D 26 mm

How to preserve/recover samples (Video)

 Videos: How to preserve/recover samples

Presevation Plates (Nucleic Acid/ Blood)

96-well

Cellulose or Nylon

Total volume: 5 μL per well.

Size: W 115 mm x D 80 mm.

Made from polypropylene, cut to your specifications.

Compatible with a PCR 96-well plate.

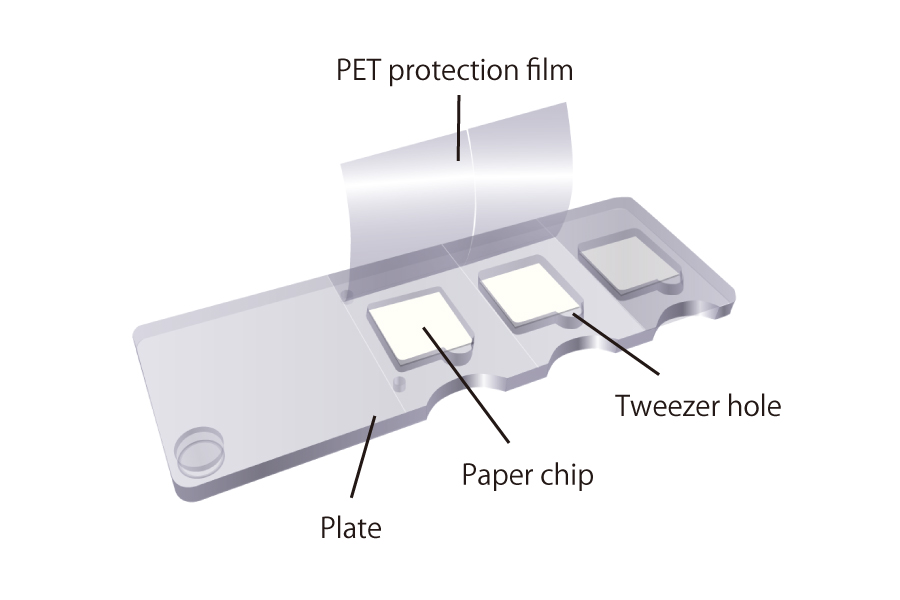

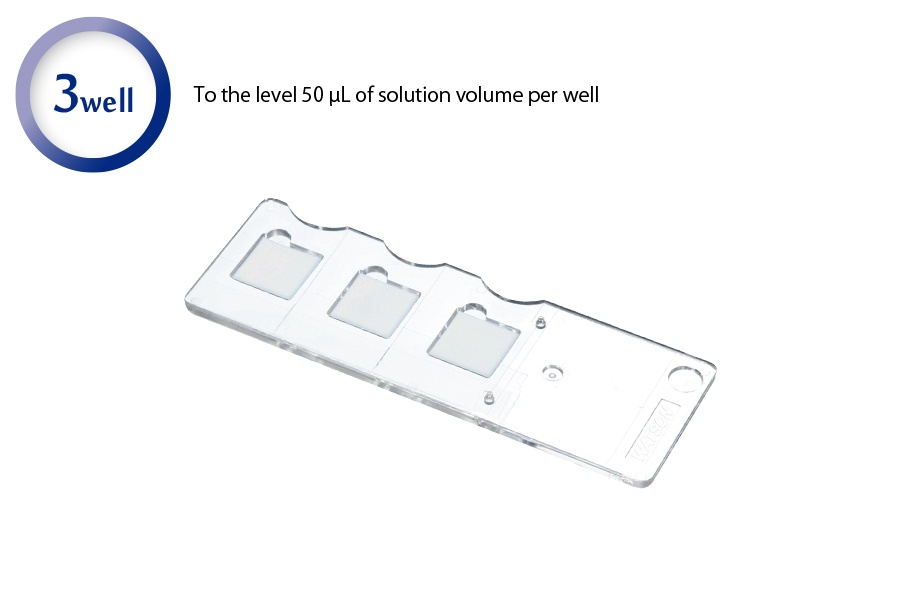

3-well

Cellulose or Nylon

Total volume: 50 μL per well.

size: W 76 mm x D 26 mm

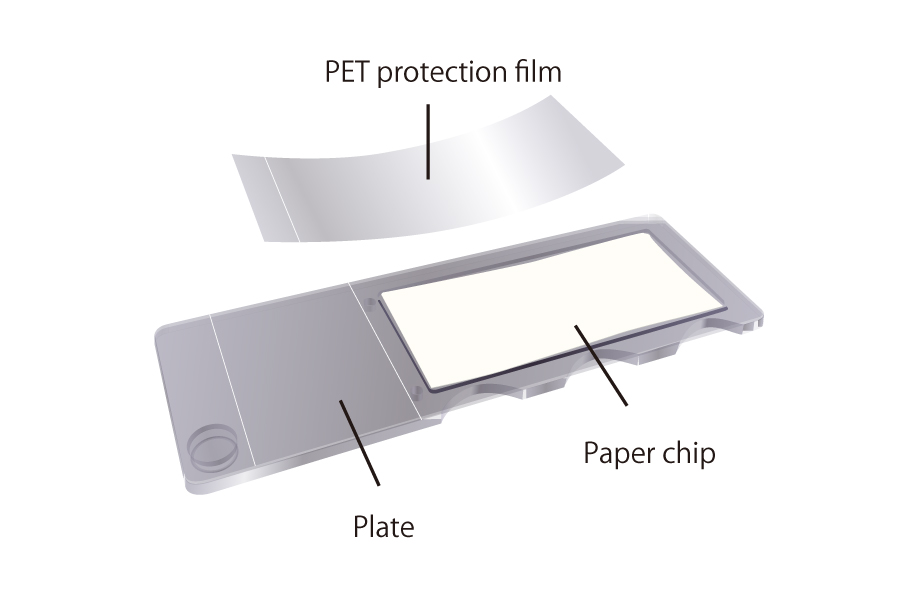

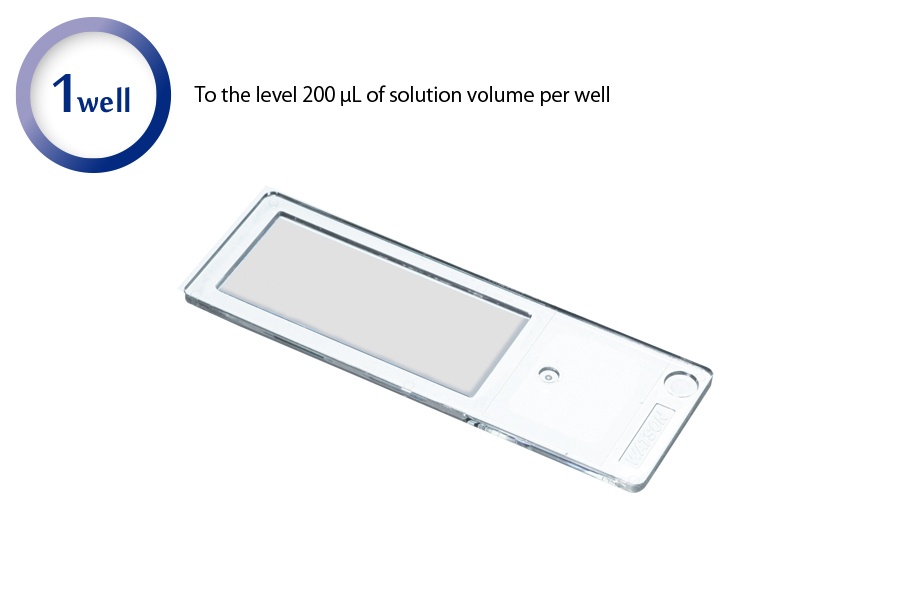

1-well

Cellulose or Nylon



Total volume: 200 μL per well.

size: W 76 mm x D 26 mm



Applications

1. Preservation of oligo-synthesis RNA probe and ISH (ISH: In situ hybridization)

There is always a risk of RNase contamination due to operator error, which can affect the outcome of your experiment. By using PVP, the samples can be maintained in consistent condition for each in situ hybridization (ISH) experiment. The samples can be preserved for more than four months at room temperature.

1-week after the preservation   4-month after the presevation



2.DNA Preservation and Sequence Analysis

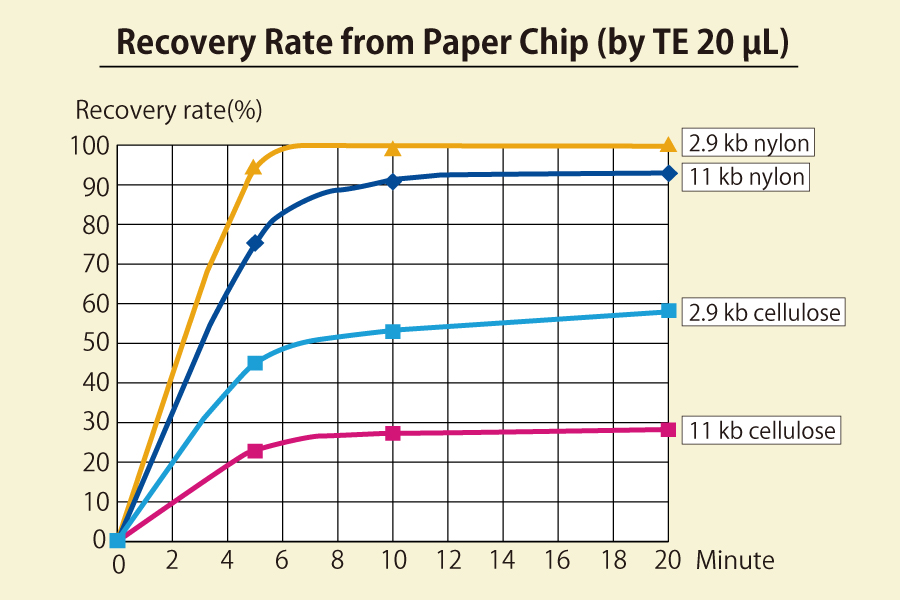

Target DNA can be preserved and used for later analysis. PVP with nylon paper chips is recommended for long chain samples, such as genomic DNA or high value samples. After sufficient drying, samples can be preserved for several months. (Preservation period may vary depending on the level of purification.)

Ordering Information

Preservation Plate
Product Cat.No. PKG Size Price
Preservation Plate, 96 well, Cellulose 176-501C 5 plates/unit 82.00
Buy
Preservation Plate, 96 well, Nylon 176-502C 5 plates/unit 82.00
Buy
Preservation Plate, 3well, Cellulose 176-301C 10 plates/box 134.00
Buy
Preservation Plate, 3well, Nylon 176-302C 10 plates/box 134.00
Buy
Preservation Plate, 1well, Cellulose 176-201C 10 plates/box 108.00
Buy
Preservation Plate, 1well, Nylon 176-202C 10 plates/box 108.00
Buy
Microbial Preservation Plate for Bacteria, 96 well, Sterilized 176-531S 5 plates/unit 85.00
Buy
Microbial Preservation Plate for Fungi, 96 well, Sterilized 176-551S 5 plates/unit 85.00
Buy
Microbial Preservation Plate for Bacteria, 3 well, Sterilized 176-331S 5 plates/unit 143.00
Buy
Microbial Preservation Plate for Fungi, 3 well, Sterilized 176-351S 5 plates/unit 143.00
Buy
Microbial Preservation Plate for Bacteria, 1 well, Sterilized 176-231S 5 plates/unit 65.00
Buy
Microbial Preservation Plate for Fungi, 1 well, Sterilized 176-251S 5 plates/unit 65.00
Buy

The shipping method is FedEx Ground or equivalent service.
