Features
Excellent thickness accuracy within ±10%
As PDMS monolayer or with plate film can be used in combination.

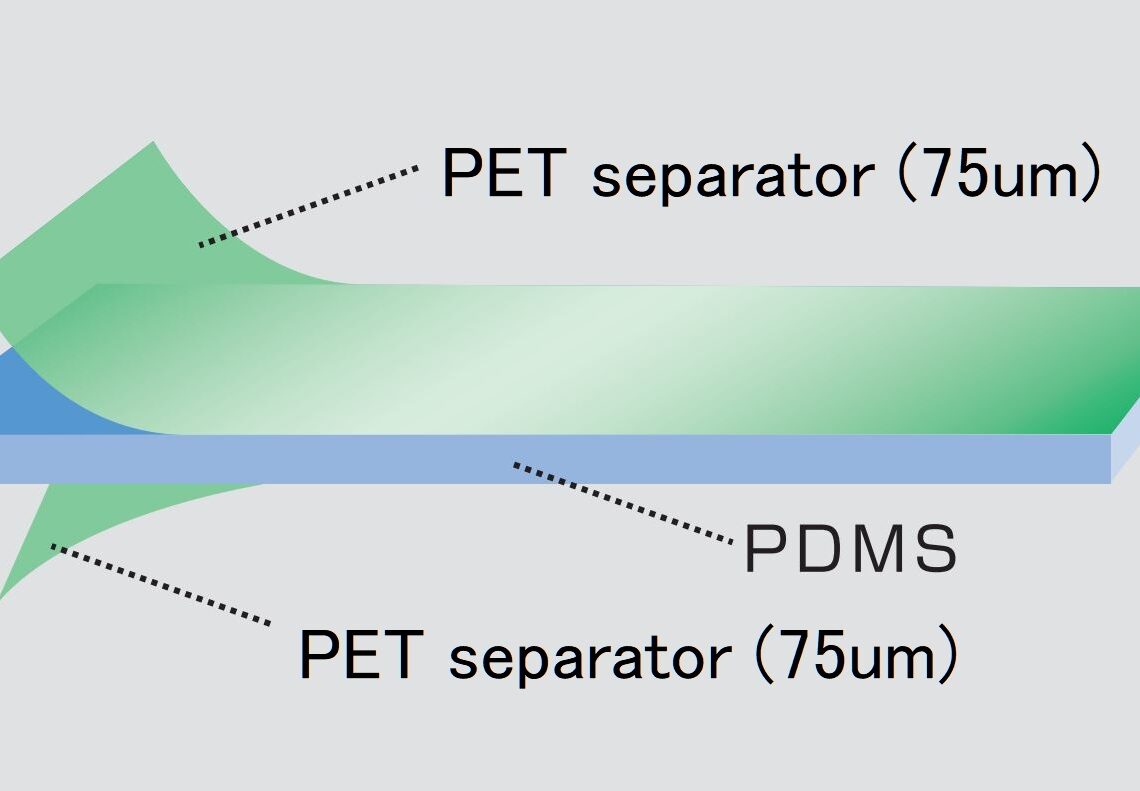

Laminated with PET separators (protective film) on both sides, it is easy to handle, prevent contamination with foreign objects, and has excellent dimensional stability during processing.
Use of PDMS film (Ultra-thin type)
Field of analysis of live bacteria, cells and DNA, etc.
Chemical and biochemical fields such as culture
Microfluidic devices, etc.
Product name
|
PDMS film (Ultra-thin type)
|
---|---|
Materials
|
PDMS (Polydimethylsiloxane)
|
Size
|
150 mm × 100 mm
300 mm x 300 mm
|
Thickness
|
50 μm, 100 μm, 150 μm and 200 μm
|
Hardness
|
56 degrees
|
Tensile strength
|
8.0 Mpa
|
Product | Size | Storage | Cat.No. | PKG Size | Price | |
---|---|---|---|---|---|---|
PDMS film (Ultra-thin type), 50 µm *** Limited period offer till stocks last. *** |
150 mm x 100 mm | RT | CSCPD501 | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), 100 µm *** Limited period offer till stocks last. *** |
150 mm x 100 mm | RT | CSCPD1001 | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), 150 µm *** Limited period offer till stocks last. *** |
150 mm x 100 mm | RT | CSCPD1501 | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), 200 µm *** Limited period offer till stocks last. *** |
150 mm x 100 mm | RT | CSCPD2001 | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), UT60, 100 µm | 150 mm x 100 mm | RT | CSCPD1001-UT | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), UT60, 100 µm | 150 mm x 100 mm | RT | CSCPD10015-UT | 5 sheet | 219.00 | Buy |
PDMS film (Ultra-thin type), UT60, 100 µm | 300 mm x 300 mm | RT | CSCPD1003-UT | 1 sheet | 275.00 | Buy |
PDMS film (Ultra-thin type), UT60, 150 µm | 150 mm x 100 mm | RT | CSCPD1501-UT | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), UT60, 150 µm | 150 mm x 100 mm | RT | CSCPD15015-UT | 5 sheet | 219.00 | Buy |
PDMS film (Ultra-thin type), UT60, 150 µm | 300 mm x 300 mm | RT | CSCPD1503-UT | 1 sheet | 275.00 | Buy |
PDMS film (Ultra-thin type), UT60, 200 µm | 150 mm x 100 mm | RT | CSCPD2001-UT | 1 sheet | 63.00 | Buy |
PDMS film (Ultra-thin type), UT60, 200 µm | 150 mm x 100 mm | RT | CSCPD20015-UT | 5 sheet | 219.00 | Buy |
PDMS film (Ultra-thin type), UT60, 200 µm | 300 mm x 300 mm | RT | CSCPD2003-UT | 1 sheet | 275.00 | Buy |
Product | Size | Storage | Cat.No. | PKG Size | Price | |
---|---|---|---|---|---|---|
Superhydrophilic PDMS film (Ultra-thin type), 100 um | 150 mm x 100 mm | RT | CSCPT1002 | 1 sheet | 79.00 | Buy |
Superhydrophilic PDMS film (Ultra-thin type), 100 um | 150 mm x 100 mm | RT | CSCPT10025 | 5 sheet | 272.00 | Buy |
Superhydrophilic PDMS film (Ultra-thin type), 150 um | 150 mm x 100 mm | RT | CSCPT1502 | 1 sheet | 79.00 | Buy |
Superhydrophilic PDMS film (Ultra-thin type), 150 um | 150 mm x 100 mm | RT | CSCPT15025 | 5 sheet | 272.00 | Buy |
Superhydrophilic PDMS film (Ultra-thin type), 200 um | 150 mm x 100 mm | RT | CSCPT2002 | 1 sheet | 79.00 | Buy |
Superhydrophilic PDMS film (Ultra-thin type), 200 um | 150 mm x 100 mm | RT | CSCPT20025 | 5 sheet | 272.00 | Buy |
