Gamma Beam Sterilized Liquid Transportation / Storage Container
Steritainer Plus is made mainly from polyethylene (PE) using the blow-molding method, and are 3D single-use sterile bags perfect for storing and transporting medical products, etc. They are sterilized with gamma rays and delivered in a sterile state, so they are ready-to-use out of the box. They can be used for a wide range of items that require sterile environments within containers, such as biopharmaceuticals, regenerative drugs, cosmetics and functional food products.
|
Gamma Beam Sterilized Single-use sterile bags are suitable for a wide range of applications in biotechnology-based medical products, such as the preparation, storage, and transportation of aseptic solutions. They are gamma beam sterilized and ready to use right out of the box. |
|
Space Saving The 3D shape has been developed for single-use bags of less than 20L. It can be installed in narrow spaces, such as sterile chambers. The compact, layer-by-layer packaging ensures that it doesn’t take up much space, even during storage. |
|
High-Strength Design Stirring is possible without transferring the contents to a glass container, as the main body is designed to be self-sustaining with high strength. Melt efficiency during solvent stirring is excellent, and adjustments for powder media can be made quickly. |
|
Easy to Handle Special embossing on the container surface prevents creases and blemishes while reducing scratches during transportation. A transparent section is placed in a highly visible location to allow easy confirmation of solvent color changes and other observations. |
Supplying culture medium to a suspension bioreactor | Mixing culture medium using a magnetic stirrer |
Culture medium filling with a filling stand | Filling culture medium using an outer container |
Culture Medium Supply and Tube Connection Method | Collection of Culture Medium |
Shaking Culture |
Q: What regulatory standards does Steritainer Plus comply with?
A: Steritainer Plus complies with the Japanese Pharmacopoeia (JP) and the United States Pharmacopeia (USP) Class IV standards.
Q: What is the material composition of Steritainer Plus?
A: Steritainer Plus is made from polyethylene. It uses additive-free polyethylene, and no adhesive-like materials are used in the blow molding process.
Q: What are the advantages of the three-dimensional (3D) shape?
A: The primary advantage is space savings. Currently, 2D-shaped film bags (commonly referred to as pillow-type bags) are most widely used for single-use applications (20L or less). Steritainer Plus has a footprint approximately one-third smaller than that of the 2D-shaped bags.
Traditionally, 3D-shaped containers have been widely used for the retention and transport of fluids because the 3D shape offers better space efficiency and handling convenience. Despite its 3D design, Steritainer Plus is foldable, making it compact for storage. The 3D bag is also ideal for customers who use bulky or heavy glass bottles.
Product | Description | Cat.No. | PKG Size | Price | |
---|---|---|---|---|---|
Steritainer Plus (5L) | Container Inner Dimension: 190 x 190 x 190 mm | SR-05S | 10 sheets | - | Inquire |
Steritainer Plus (10L) | Container Inner Dimension: 230 x 230 x 230 mm | SR-10S | 10 sheets | - | Inquire |
Steritainer Plus (20L) | Container Inner Dimension: 285 x 285 x 285 mm | SR-20S | 10 sheets | - | Inquire |
Steritainer Plus (5L) with 3-Port Connector | Container Inner Dimension: 190 x 190 x 190 mm | SR-05P | 10 sheets | - | Inquire |
Steritainer Plus (10L) with 3-Port Connector | Container Inner Dimension: 230 x 230 x 230 mm | SR-10P | 10 sheets | - | Inquire |
Steritainer Plus (20L) with 3-Port Connector | Container Inner Dimension: 285 x 285 x 285 mm | SR-20P | 10 sheets | - | Inquire |
- Packing Dimension (mm): Outer Box: 400 x 295 x 295 (H) / Inner Box: 279 x 279 x 183 (H)

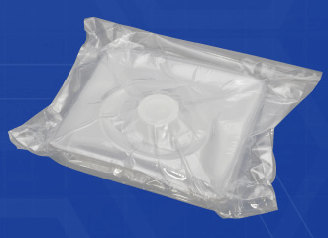

- 1 package is composed of 5 container sheets and 1 set is composed of 2 boxes. Sterility is kept at use because each container has double packages with sterilized poly bags.
- The shipping method is FedEx Ground or equivalent service.
