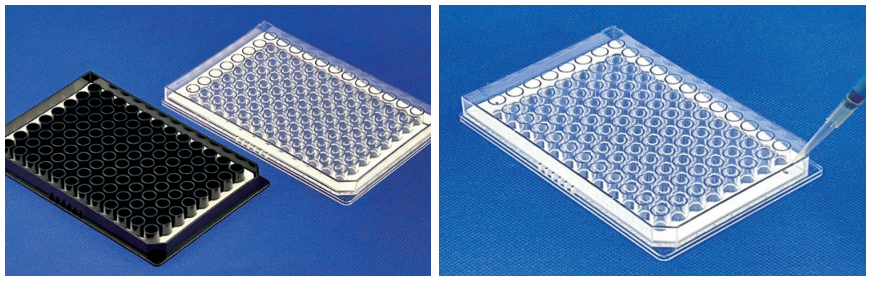

- Available in two types – regular plate (clear) or bottomless plate (black)
- Available in three types for bottomless plate no-adhesive, with acrylic adhesive or silicone adhesive
- For attaching PDMS film, silicone adhesive is recommended. The combination of PDMS and acrylic adhesive may cause leak.
- For attaching Glass, acrylic adhesive is recommended.
96-well Low Edge Effect Plate
Redugint the edge effect in microplate by preventing evaporation from the outer wells
Effective reduction of the edge effect is achieved using a proprietary segmented water absorption sheet.
1.8 mL (900 µL per sheet) water-absorption sheet (with suction guide holes) reduces the impact of edge effects on the outer wells. Depending on the research application, you can choose between a flat-bottom or bottomless type that can be customized with unique bottom materials.
Specification
- Material : Plate Flame : Polystyrene (PS) / Water Absorption Sheet : PET and PU
- Dimension (mm) : 127.8 x 85.5 x 13.4

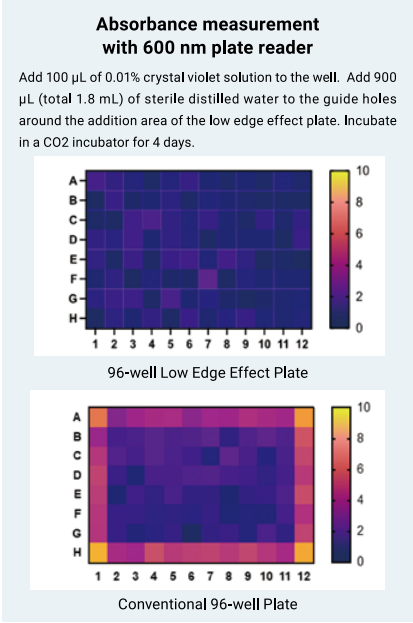

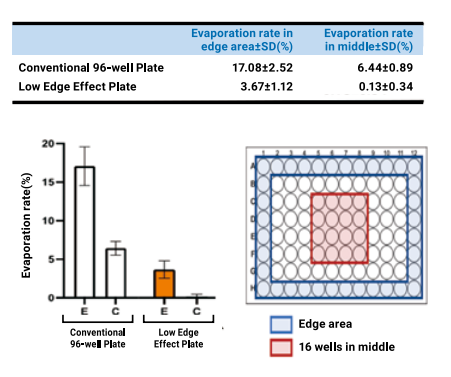

Evaporation Data
Ordering Information
| Product | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| 96-well Low Evaporation Microplate, Bottomless | RT | CSCED0961 | 5 plates | 126.00 | Buy |
| 96-well Low Evaporation Microplate, Bottomless with acrylic adhesive tape | RT | CSCED0962 | 5 plates | 166.00 | Buy |
| 96-well Low Evaporation Microplate, Bottomless with silicone adhesive tape | RT | CSCED0963 | 5 plates | 166.00 | Buy |
| 96-well Low Evaporation Microplate, Flat Bottom Type, Clear | RT | CSCED0964 | 5 plates | 83.00 | Buy |
