SunShell HPLC Columns
SunShell HPLC columns are manufactured using innovative core shell particle technology that provides significantly increased column efficiency and chromatographic resolution without the high back pressure seen in sub-2 µm columns.

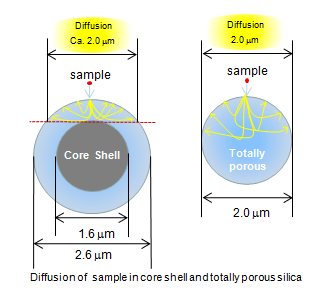

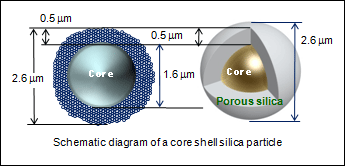

- 2.6 µm core shell particle with 0.5 µm porous silica layer
- Provides the same high efficiency and high speed as sub-2 µm
- Less than half the backpressure of sub-2 µm

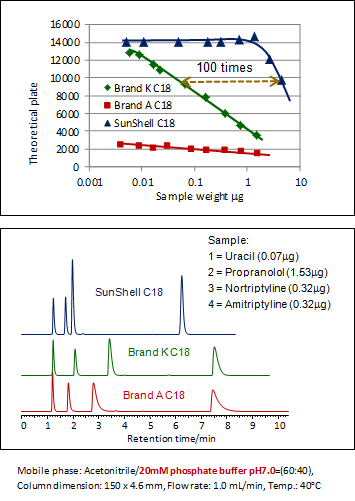

- Up to 100 times higher loading capacity compared to other core shell materials

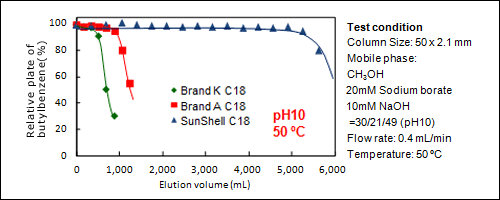

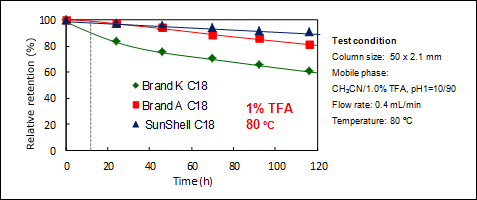

- Improved pH stability from 1.0 to 10 (C18)
SunShell HPLC Columns are manufactured by ChromaNik Technologies, Inc.
Stationary Phase | Particle Size | Pore Size | Surface Area | Carbon Content | pH Range | |
---|---|---|---|---|---|---|
C18 | C18 | 2.6 µm, 3.5 µm, 5 µm | 90Å | 150 m²/g | Approx. 7% | 1.5 - 10 |
C8 | C8 | 2.6 µm | 90Å | 150 m²/g | Approx. 4.5% | 1.5 - 9 |

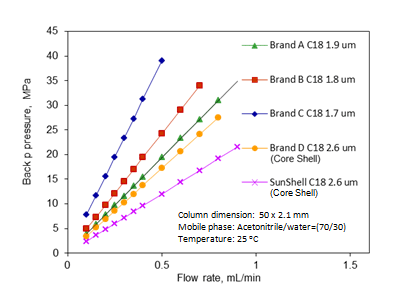

SunShell C18 column shows less than half the backpressure compared to sub-2 µm C18 columns.

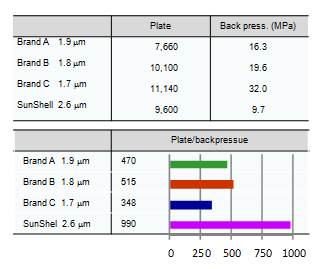

Under a constant backpressure condition, SunShell C18 column shows two times higher performance than sub-2 µm columns.
By providing significantly increased column efficiency and resolution without the high back pressure, chromatographers can achieve UHPLC results on HPLC system.

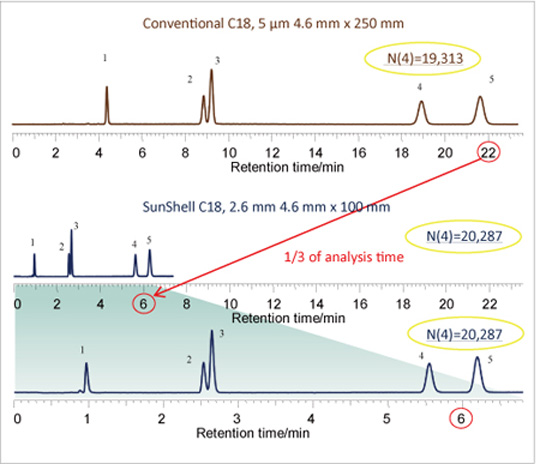

HPLC system

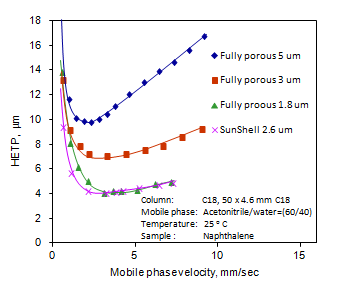

100 mm of SunShell column provides the same number of theoretical plates (efficiency) as the 250 mm of conventional fully porous 5 µm column. Consequently, the analysis time can be reduced to 1/3 in the HPLC system.

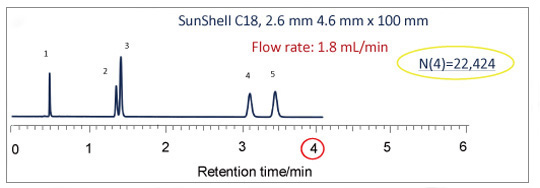

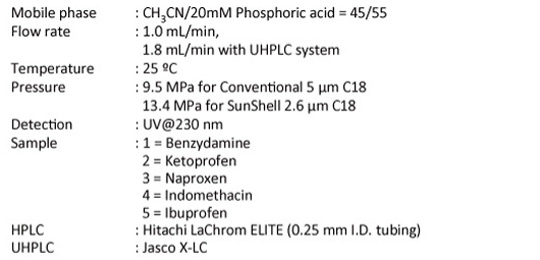

UHPLC system
In the UHPLC system, the theoretical plates can be further increased by about 20 % when using a higher flow rate. The analysis time can be reduced to 1/6 compared with 250 mm of conventional fully porous 5 µm column.

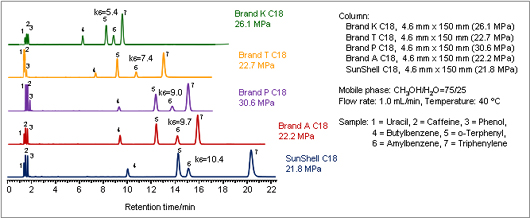

Retention and back pressure
SunShell shows the highest retention and the lowest backpressure compared with other core shell columns.

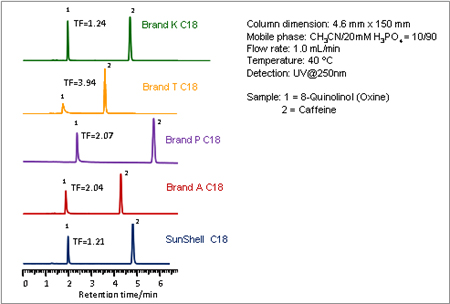

Chelating compound
Metal impurities in the core shell particle cause the peak tailing for 8-Quinolinol (Oxine).

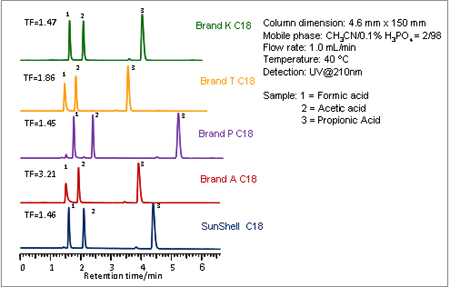

Acidic compound
Formic acid is used for the test of peak tailing. SunShell, Brand K and P show sharp peaks.
- C18 bonded porous glass filter (4 mm ID, 4 mm thickness)
- Low dead volume
- Compatible with the column I.D. from 2.1 mm to 4.6 mm
Product | Cat.No. | PKG Size | Price(US$) | |
---|---|---|---|---|
SunShell C18, 2.6µm (0.075 mmID x 50 mm) | CB6J4P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.075 mmID x 150 mm) | CB6J7P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.1 mmID x 50 mm) | CB6H4P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.1 mmID x 150 mm) | CB6H7P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.15 mmID x 50 mm) | CB6K4P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.15 mmID x 150 mm) | CB6K7P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.3 mmID x 50 mm) | CB6G4P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.3 mmID x 150 mm) | CB6G7P | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.5 mmID x 50 mm) | CB6F48 | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (0.5 mmID x 150 mm) | CB6F78 | 1 pkg | 770.00 | Buy |
SunShell C18, 2.6µm (1.0 mmID x 50 mm) | CB6141 | 1 pkg | 635.00 | Buy |
SunShell C18, 2.6µm (1.0 mmID x 100 mm) | CB6161 | 1 pkg | 702.00 | Buy |
SunShell C18, 2.6µm (1.0 mmID x 150 mm) | CB6171 | 1 pkg | 740.00 | Buy |
SunShell C18, 2.6µm (2.1 mmID x 30 mm) | CB6931 | 1 pkg | 504.00 | Buy |
SunShell C18, 2.6µm (2.1 mmID x 50 mm) | CB6941 | 1 pkg | 513.00 | Buy |
SunShell C18, 2.6µm (2.1 mmID x 75 mm) | CB6951 | 1 pkg | 551.00 | Buy |
SunShell C18, 2.6µm (2.1 mmID x 100 mm) | CB6961 | 1 pkg | 614.00 | Buy |
SunShell C18, 2.6µm (2.1 mmID x 150 mm) | CB6971 | 1 pkg | 653.00 | Buy |
SunShell C18, 2.6µm (3.0 mmID x 30 mm) | CB6331 | 1 pkg | 504.00 | Buy |
SunShell C18, 2.6µm (3.0 mmID x 50 mm) | CB6341 | 1 pkg | 513.00 | Buy |
SunShell C18, 2.6µm (3.0 mmID x 75 mm) | CB6351 | 1 pkg | 551.00 | Buy |
SunShell C18, 2.6µm (3.0 mmID x 100 mm) | CB6361 | 1 pkg | 614.00 | Buy |
SunShell C18, 2.6µm (3.0 mmID x 150 mm) | CB6371 | 1 pkg | 653.00 | Buy |
SunShell C18, 2.6µm (3.0 mmID x 250 mm) | CB6381 | 1 pkg | 854.00 | Buy |
SunShell C18, 2.6µm (4.6 mmID x 30 mm) | CB6431 | 1 pkg | 504.00 | Buy |
SunShell C18, 2.6µm (4.6 mmID x 50 mm) | CB6441 | 1 pkg | 513.00 | Buy |
SunShell C18, 2.6µm (4.6 mmID x 75 mm) | CB6451 | 1 pkg | 605.00 | Buy |
SunShell C18, 2.6µm (4.6 mmID x 100 mm) | CB6461 | 1 pkg | 675.00 | Buy |
SunShell C18, 2.6µm (4.6 mmID x 150 mm) | CB6471 | 1 pkg | 717.00 | Buy |
SunShell C18, 2.6µm (4.6 mmID x 250 mm) | CB6481 | 1 pkg | 938.00 | Buy |
Product | Cat.No. | PKG Size | Price(US$) | |
---|---|---|---|---|
SunShell C18, 3.5µm (2.1 mmI.D. x 50 mm) | CB9941 | 1 pkg | 513.00 | Buy |
SunShell C18, 3.5µm (2.1 mmI.D. x 100 mm) | CB9961 | 1 pkg | 614.00 | Buy |
SunShell C18, 3.5µm (2.1 mmI.D. x 150 mm) | CB9971 | 1 pkg | 653.00 | Buy |
SunShell C18, 3.5µm (3 mmI.D. x 50 mm) | CB9341 | 1 pkg | 495.00 | Buy |
SunShell C18, 3.5µm (3 mmI.D. x 100 mm) | CB9361 | 1 pkg | 614.00 | Buy |
SunShell C18, 3.5µm (3 mmI.D. x 150 mm) | CB9371 | 1 pkg | 653.00 | Buy |
SunShell C18, 3.5µm (3 mmI.D. x 250 mm) | CB9381 | 1 pkg | 854.00 | Buy |
SunShell C18, 3.5µm (4.6 mmI.D. x 50 mm) | CB9441 | 1 pkg | 513.00 | Buy |
SunShell C18, 3.5µm (4.6 mmI.D. x 100 mm) | CB9461 | 1 pkg | 675.00 | Buy |
SunShell C18, 3.5µm (4.6 mmI.D. x 150 mm) | CB9471 | 1 pkg | 717.00 | Buy |
SunShell C18, 3.5µm (4.6 mmI.D. x 250 mm) | CB9481 | 1 pkg | 938.00 | Buy |
Product | Cat.No. | PKG Size | Price(US$) | |
---|---|---|---|---|
SunShell C18, 5µm (0.3 mmID x 50 mm) | CB3G4P | 1 pkg | 770.00 | Buy |
SunShell C18, 5µm (0.3 mmID x 150 mm) | CB3G7P | 1 pkg | 770.00 | Buy |
SunShell C18, 5µm (0.5 mmID x 50 mm) | CB3F4L | 1 pkg | 770.00 | Buy |
SunShell C18, 5µm (0.5 mmID x 150 mm) | CB3F7L | 1 pkg | 770.00 | Buy |
SunShell C18, 5µm (3.0 mmID x 150 mm) | CB3371 | 1 pkg | 653.00 | Buy |
SunShell C18, 5µm (3.0 mmID x 250 mm) | CB3381 | 1 pkg | 854.00 | Buy |
SunShell C18, 5µm (4.6 mmID x 150 mm) | CB3471 | 1 pkg | 717.00 | Buy |
SunShell C18, 5µm (4.6 mmID x 250 mm) | CB3481 | 1 pkg | 938.00 | Buy |
Product | Cat.No. | PKG Size | Price(US$) | |
---|---|---|---|---|
SunShell C8, 2.6µm (2.1 mmID x 30 mm) | CC6931 | 1 pkg | 504.00 | Buy |
SunShell C8, 2.6µm (2.1 mmID x 50 mm) | CC6941 | 1 pkg | 513.00 | Buy |
SunShell C8, 2.6µm (2.1 mmID x 75 mm) | CC6951 | 1 pkg | 551.00 | Buy |
SunShell C8, 2.6µm (2.1 mmID x 100 mm) | CC6961 | 1 pkg | 614.00 | Buy |
SunShell C8, 2.6µm (2.1 mmID x 150 mm) | CC6971 | 1 pkg | 653.00 | Buy |
SunShell C8, 2.6µm (3.0 mmID x 30 mm) | CC6331 | 1 pkg | 504.00 | Buy |
SunShell C8, 2.6µm (3.0 mmID x 50 mm) | CC6341 | 1 pkg | 513.00 | Buy |
SunShell C8, 2.6µm (3.0 mmID x 75 mm) | CC6351 | 1 pkg | 551.00 | Buy |
SunShell C8, 2.6µm (3.0 mmID x 100 mm) | CC6361 | 1 pkg | 614.00 | Buy |
SunShell C8, 2.6µm (3.0 mmID x 150 mm) | CC6371 | 1 pkg | 653.00 | Buy |
SunShell C8, 2.6µm (4.6 mmID x 30 mm) | CC6431 | 1 pkg | 504.00 | Buy |
SunShell C8, 2.6µm (4.6 mmID x 50 mm) | CC6441 | 1 pkg | 513.00 | Buy |
SunShell C8, 2.6µm (4.6 mmID x 75 mm) | CC6451 | 1 pkg | 605.00 | Buy |
SunShell C8, 2.6µm (4.6 mmID x 100 mm) | CC6461 | 1 pkg | 675.00 | Buy |
SunShell C8, 2.6µm (4.6 mmID x 150 mm) | CC6471 | 1 pkg | 717.00 | Buy |
