SunShell HFC18-16 (160Å)

SunShell HPLC columns are manufactured using innovative core shell particle technology that provides significantly increased column efficiency and chromatographic resolution without the high back pressure seen in sub-2 µm columns.

Features

- 2.6 µm core shell particle with 0.5 µm porous silica layer
- Provides the same high efficiency and high speed as sub-2 µm
- Less than half the backpressure of sub-2 µm
- Up to 100 times higher loading capacity compared to other core shell materials
- Improved pH stability from 1.0 to 10 (C18)

SunShell HPLC Columns are manufactured by ChromaNik Technologies, Inc.

Physical Characteristics

 Stationary PhaseParticle SizePore SizeSurface AreaCarbon ContentpH Range
HFC18-16 C18 2.6 µm 160Å 90 m²/g Approx. 2.5% 1.5 - 9



Schematic of Diffusion Paths

2.6 µm core shell particle provides the same diffusion width as 2.0 µm totally porous particle.

Diffusion of  sample in core shell and totally porous silica

for Separation of peptide and proteins

SunShell HFC18 (Hexa-Functional C18) is a Core Shell column designed specifically for the separation of proteins and peptides. SunShell HFC18 with the controlled ligand density and the special end-capping offers higher resolution and increased sample recovery than conventional C18 columns.

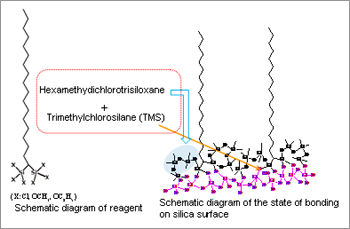

New Bonding Technology
Hexa-Functional C18 has six functional groups. This bonding makes the column much more stable under acidic condition.

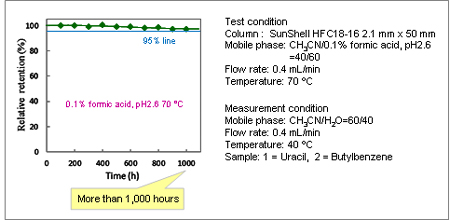

Stability under LC/MS mobile phase condition

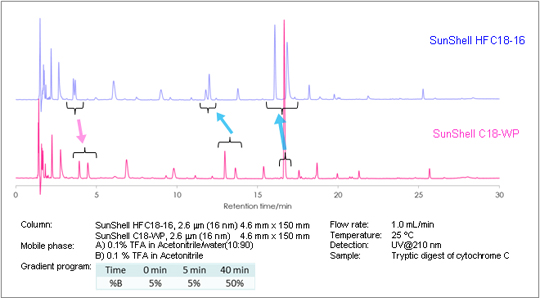

Separation of peptides: Tryptic digest of Cytochrome C

Separation of peptides: Tryptic digest of Cytochrome C

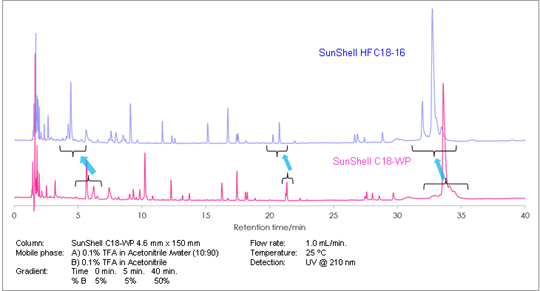

Separation of peptides: Tryptic digest of Myoglobin

Separation of peptides: Tryptic digest of Myoglobin

Ordering Information

SunShell HFC18-16
Product Cat.No. PKG Size Price(US$)
SunShell HFC18-16, 2.6µm (2.1 mmID x 50 mm) CG6941 1 pkg 523.00 Buy
SunShell HFC18-16, 2.6µm (2.1 mmID x 100 mm) CG6961 1 pkg 627.00 Buy
SunShell HFC18-16, 2.6µm (2.1 mmID x 150 mm) CG6971 1 pkg 665.00 Buy
SunShell HFC18-16, 2.6µm (3.0 mmID x 50 mm) CG6341 1 pkg 523.00 Buy
SunShell HFC18-16, 2.6µm (3.0 mmID x 100 mm) CG6361 1 pkg 627.00 Buy
SunShell HFC18-16, 2.6µm (3.0 mmID x 150 mm) CG6371 1 pkg 665.00 Buy
SunShell HFC18-16, 2.6µm (4.6 mmID x 50 mm) CG6441 1 pkg 523.00 Buy
SunShell HFC18-16, 2.6µm (4.6 mmID x 100 mm) CG6461 1 pkg 688.00 Buy
