CellGem®: Single cell capture and culture slide
Single cell capture and culture slide

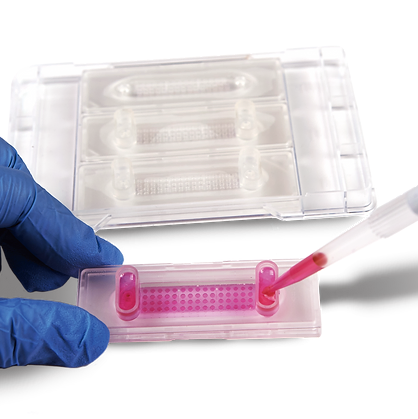

CellGem is a simple and smart single cell capture and culture platform. It utilizes microfluidic technology which enables precise cell manipulation at high-throughput and small reagent consumption
 |
CellGem can be used for: Stable cell line development
Cell heterogeneity studies
|

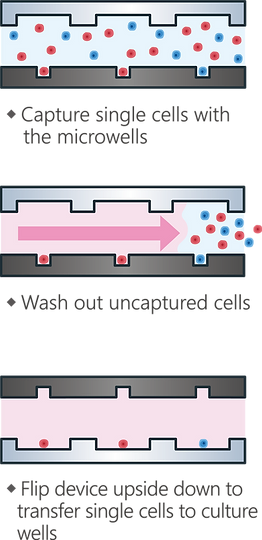

Principle
The CellGem platform comprises of an array of microwells for capturing single cells, coupled with a corresponding array of culture wells for long-term culture of the single cells.

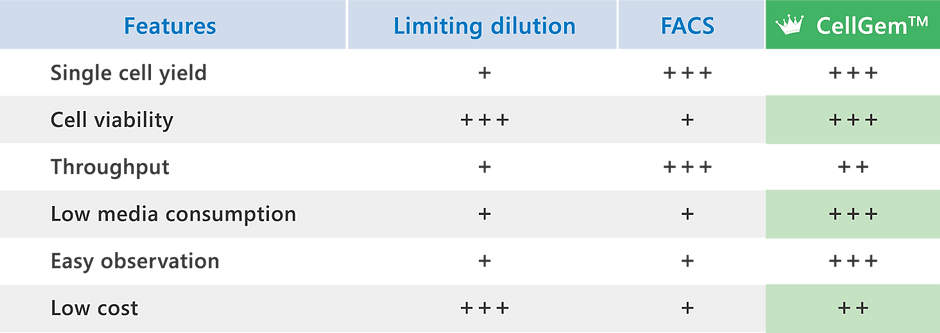

Validated cell lines & Features
-
Cho-k1
-
AA8
-
Jurkat
-
SP2/0-Ag14
-
A-549
-
L929
-
Eh7a
Benefits
-
High single cell efficiency
-
High cell viability
-
Reduce sample consumption
-
Easy operation (only a standard pipette needed)
-
Easy observation
-
High cells growth rate
Reference videos
|
1. Pre-rince & Degas |
2. Load & Wash Cells |
3. Seal & Flip & Culture |
|
4. Exchange Medium |
5. Harvest |
Download
Ordering Information
| Product | Storage | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| CellGem Single cell culture, S, 1 chip set | Room Temp. | CellGemTS_610010 | 1 chip set | 250.00 | Buy |
| CellGem Single cell culture, S, 3 chips set | Room Temp. | CellGemTS_610030 | 1 plate set | 470.00 | Buy |
| CellGem Single cell culture, S, 6 chips set | Room Temp. | CellGemTS_610060 | 2 plates set | 719.00 | Buy |
| CellGem Single cell culture, M, 1 chip set | Room Temp. | CellGemTM_620010 | 1 chip set | 250.00 | Buy |
| CellGem Single cell culture, M, 3 chips set | Room Temp. | CellGemTM_620030 | 1 plate set | 470.00 | Buy |
| CellGem Single cell culture, M, 6 chips set | Room Temp. | CellGemTM_620060 | 2 plates set | 719.00 | Buy |
| CellGem Single cell culture, L, 1 chip set | Room Temp. | CellGemTL_630010 | 1 chip set | 250.00 | Buy |
| CellGem Single cell culture, L, 3 chips set | Room Temp. | CellGemTL_630030 | 1 plate set | 470.00 | Buy |
| CellGem Single cell culture, L, 6 chips set | Room Temp. | CellGemTL_630060 | 2 plates set | 719.00 | Buy |
| CellGem Single cell culture, SML, 3 sizes set | Room Temp. | CellGemTX_690030 | 1 plate set | 470.00 | Buy |
S size: For cells 8-12 µm in diameter
M size: For cells 11-17 µm in diameter
L size: For cells 14-25 µm in diameter
