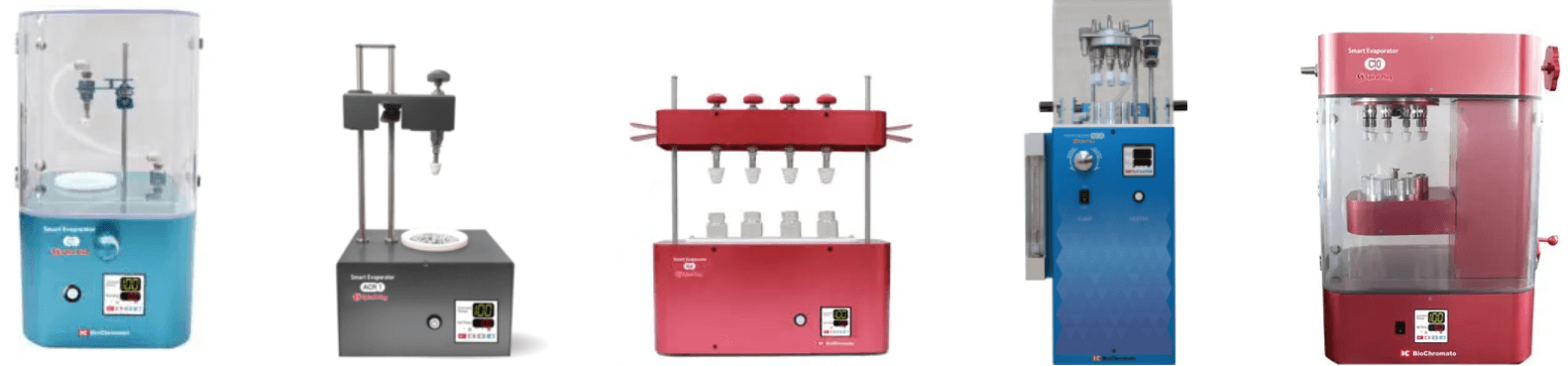

Smart Evaporator™ - Over 2000 units installed
The solvent evaporator for quick and easy evaporation of DMSO, DMF, and water.
|
 |

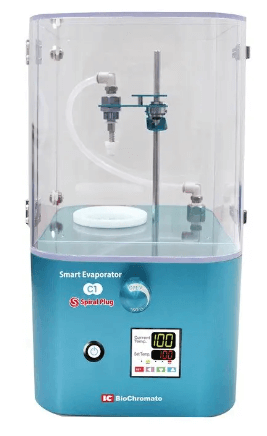

Smart Evaporator C1 - Single Channel
*CE/UL/CSA certified product |
 |
Specification
| Product Name | Smart Evaporator C1 |
| Heater shape ＆ size | Circle shaped, φ69 mm |
| Heater temperature range | Room temperature ~ 100℃ |
| Gas Purge | 〇 |
| Inner mouth diameter of compatible containers | φ4~32 mm (Examples of compatible containers) |
| Color | 4 colors (Sun, Squall, Sky, Grass) |
| Size (mm) | W220 x D227 x H382 (except protruded parts) |
| Weight | 4.3 kg |
| Operating environment | Temperature: 10℃~ to 40℃ Humidity: 20~80% |
*This is a CE/UL/CSA certified product. (CE Certification)

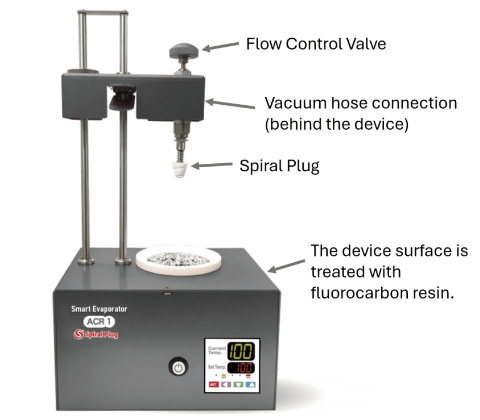

Smart Evaporator ACR1 - Single Channel for Acid Samples
|
 |
Specification
| Product Name | Smart Evaporator ACR1 |
| Heater shape ＆ size | Circle shaped, φ69 mm |
| Heater temperature range | Room temperature ~ 100℃ |
| Inner mouth diameter of compatible containers | φ4~32 mm (Examples of compatible containers) |
| Color | 1 colors (Stone) |
| Size (mm) | W205 x D150 x H379 (except protruded parts) |
| Weight | 2.1 kg |

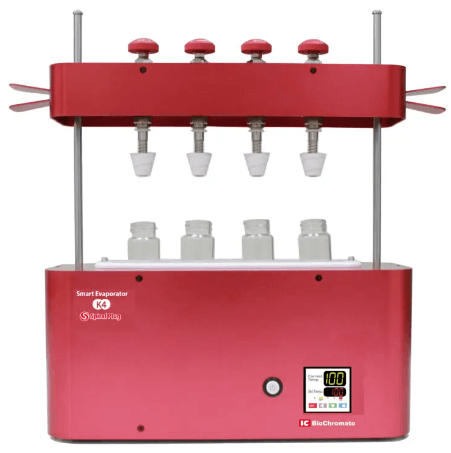

Smart Evaporator K4 - Bump-Free 4 Channel Evaporator
*CE/UL/CSA certified product |
 |
Specification
| Product Name | Smart Evaporator K4 |
| Heater shape ＆ size | Rectangle shaped, W226 x D55 x H58 mm |
| Heater temperature range | Room temperature to 100℃ |
| Inner mouth diameter of compatible containers | φ4~32 mm (Examples of compatible containers) |
| Color | 1 colors (Sun) |
| Size (mm) | W340 x D156 x H414.2 (except protruded parts) |
| Weight | 4.8 kg |
| Operating environment | Temperature: 10℃~ to 40℃ Humidity: 20~80% |
*This is a CE/UL/CSA certified product. (CE Certification)

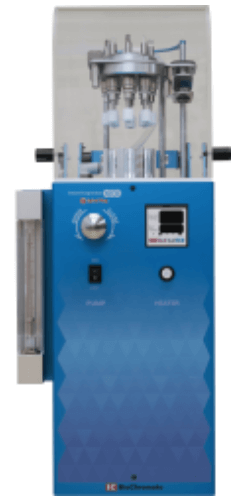

Smart Evaporator MT8 - 8-channel Evaporator for microtubes
|
 |
Specification
| Product Name | Smart Evaporator MT8 |
| Heater shape ＆ size | Round shaped, φ 68.5 mm |
| Heater temperature range | Room temperature to 60℃ |
| Gas Purge | 〇 |
| Size of container | 1.5/5.0 mL microtube (designed using Eppendorf products as standard |
| Color | 1 color (Aqua) |
| Size (mm) | W188 (252) x D255 (304) x H585 |
| Weight | 11.3 kg |
| Pump | Contained within main unit |
| Flow | Max. 60 L/min |
| Power source | Single phase 100V |

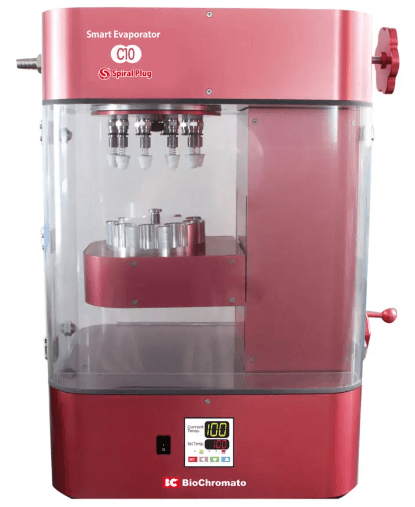

Smart Evaporator C10 - Bump-Free 10 Channel Evaporator
|
 |
Specification
| Product Name | Smart Evaporator C10 |
| Heater shape ＆ size | solid vial holder with 10 holes (available in 3 sizes: φ11.7mm/ φ18mm/ φ27mm) |
| Heater temperature range | Room temperature to 100℃ |
| Color | 4 colors (Sun, Squall, Sky, Grass) |
| Size (mm) | W350 x D300 x H531 (except protruded parts) |
| Weight | 20.0 kg |
| Operating environment | Temperature: 10℃~ to 40℃ Humidity: 20~80% |
*This is a CE/UL/CSA certified product.
Why Smart Evaporator
|
DMSO / DMF / water Evaporator
|
Bump Free Technology
|
In Vial Evaporation
|
 |
 |
 |
|
The Smart Evaporator enables efficient evaporation of high boiling point solvents. With the inert gas purging feature (ex. nitrogen), it’s great for drying down solvents such as DMSO, DMF and water.
(inert gas recommended).
|
The novel Spiral Plug technology generates a helical flow of air or inert gas over the surface of your solvent, thereby increasing the surface area. Since the vial isn’t under high vacuum, there is no risk of bumping or splashing.
|

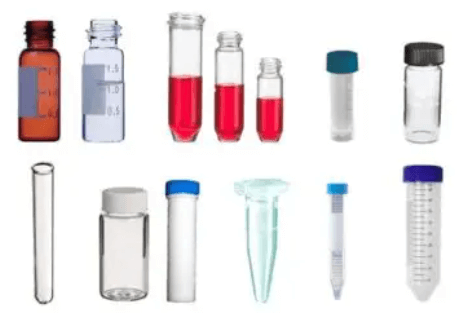

The Spiral Plugs come in various sizes for compatibility with many different sample tubes, flasks, and vials. Coupled with a quick release, the Spiral Plugs are easily exchangeable between different sizes.
|
Why can DMSO be removed?
Smart Evaporator's VVC method, Vacuum Vortex Concentration, makes it possible to remove DMSO. The spiral airflow created by the special concentrator plug "Spiral Plug" supports rapid solvent removal.
Principle of Vacuum Vortex Concentration
|

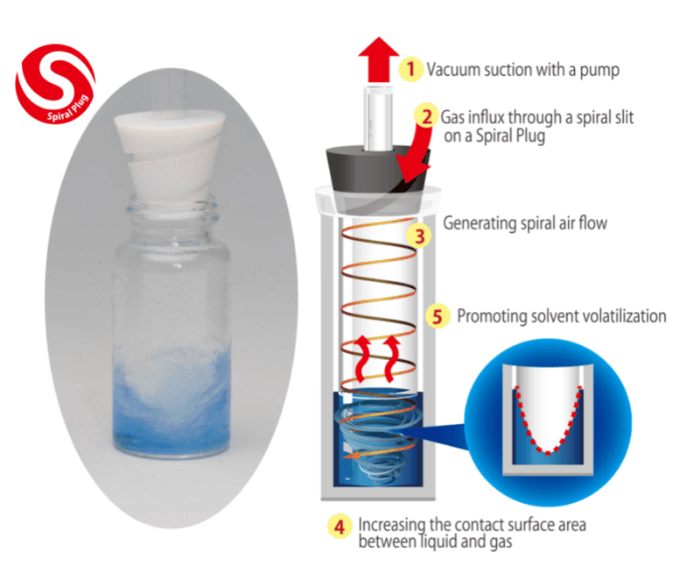

1. Vacuum suction with a pump Vacuum suction is initiated by a vacuum pump in the same way as in conventional rotary evaporators. 2. Gas influx through a spiral slit on a Spiral Plug The Spiral Plug has a special groove (slit) carved on it. When the vacuum pump starts suctioning, the gas from the surrounding air passes through the slit and flows into the container. 3. Generating spiral air flow The inflowing gas spirals inside the vessel, creating an airflow inside the vessel. 4. Increasing the contact surface area between liquid and gas The generated spiral air flow agitates the sample in the vessel. Then the surface area of the agitated sample increases. 5. Promoting solvent volatilization This is a special technique in which volatilization is promoted by the increase of surface area caused by the spiral airflow. |
Evaporation speed chart

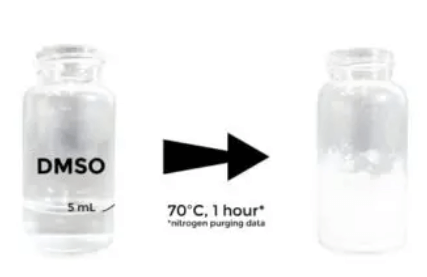

The following is an example of the evaporation speed at which 5 mL of DMSO or DMF is evaporated in a 20 mL vial. DMSO, which is difficult to evaporate easily, can be evaporated in just over 3 hours. (*Data obtained with gas replacement)
| Solvent / Quantity | Suction Flow Rate | 40ºC | 70ºC |
| Water / 5 mL (20 mL vial) | 29-30 L/min | 49 min. | 28 min. |
| DMF / 5 mL (20 mL vial) | 20-30 L/min | 43 min. | 24 min. |
| DMSO / 5 mL (20 mL vial) | 23-30 L/min | 195 min. | 69 min. |
| NMP / 5 mL (20 mL vial) | 25-30 L/min | N/A | 71 min. |
