Ultra-Fast Protein Electrophoresis in 10 min! / Precast Gel: Gradient and Single Parcentage gels are available
» Bullet PAGE One Precast Gel vs Laemmli gel 16x
(YouTube)
Bullet PAGE One Precast Gel vs Laemmli gel 16x
» Bullet PAGE One Precast Gel vs Laemmli gel 16x
(YouTube)
» Bullet PAGE One Precast Gel vs Laemmli gel 16x
(YouTube)
Bullet PAGE One Precast Gel can produce an excellent separation image with the shortest electrophoresis.
Product Name | Bullet PAGE One | Company A | Company B |
---|---|---|---|
Gel % | 5 - 15% | 4 - 15% | 4 - 12% |
Product No. | 13079-84 | - | - |
Electrophoresis Time | 10 min. | 33 min. | 50 min. |

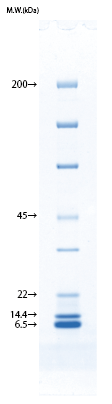

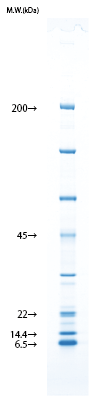

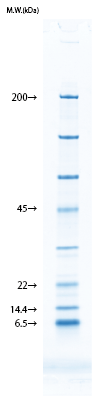

Electrophoresis Images | ![]() |
![]() |
![]() |
Electrophoresis condition
Sample: | Protein Markers(10x)(Prod No. 29458-24), 5 µl |
Gel Staining: | CBB Stain One (Prod No. 04543) |
Voltage Constant: | Bullet PAGE One: 400V, Company A and Company B: 200V |

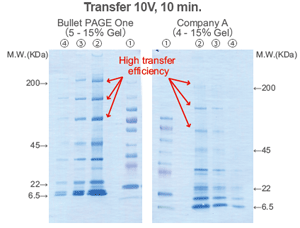

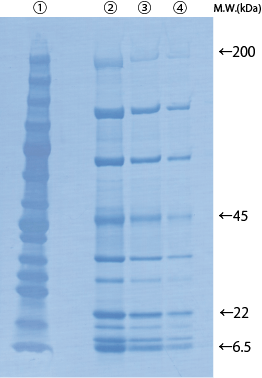

Bullet PAGE One Precast Gel indicates obviously higher protein transfer efficiency than company A's, even though blotting time was only 10 min.

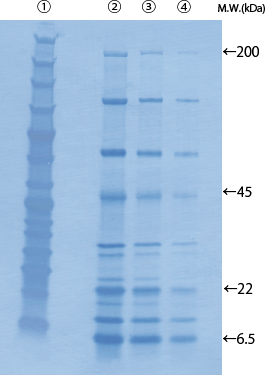

Sample
① Protein Ladder One(Triple-color)(Product No. : 09547-74)
② Protein Markers(3x) 2 µl added
④ Protein Markers(1x) 2 µl added
⑤ Protein Markers(1/3) 2 µl added
Transfer
Use Semi ‐ dry Blotting Buffer Solution for Western Blotting (Product No.: 30650-31)
(Transfer time : 10 min. and 20 min. 10V)
PVDF membrane staining
Stain PVDF membrane with CBB Stain One (Product No. : 04543).
Gel | Gradient Gel | Single Percentage Gel | ||
---|---|---|---|---|
Gel % | 5 - 11% | 5 - 15% | 6% | 8% |
Product No. 13 well 17 well |
13077-04 13078-94 |
13079-84 13080-44 |
13081-34 13082-24 |
13083-14 13084-04 |

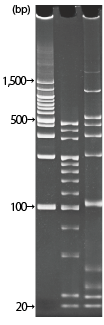

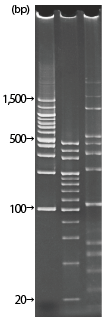

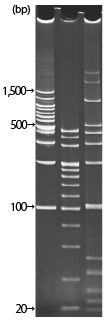

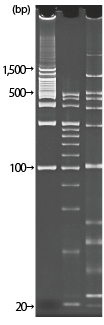

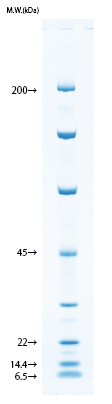

Electrophoresis Images | ![]() |
![]() |
![]() |
![]() |
Glass Plate Size: | W100mm x H80mm x T3.2mm | |
Gel Size: | W80mm x H60mm x T1.0mm | |
Sample Well Configuration / Recommended Load Volume: | 13-well / < 20 µl, 17-well / < 14 µl |

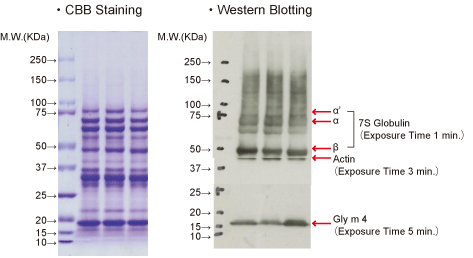

Coomassie brilliant blue staining and western blotting
The western blot is a composite image using different exposure times for each protein. This data shows that Bullet PAGE One Precast Gel is compatible with CBB staining and western blot techniques.
Data courtesy of professor Tatsuya Moriyama, Faculty of Agriculture, Kinki University
Product | Cat.No. | Storage | PKG Size | Price(US$) | |
---|---|---|---|---|---|
Bullet PAGE One Precast Gel (5-11%, 13 wells) | 13077-04 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (5-11%, 17 wells) | 13078-94 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (5-15%, 13 wells) | 13079-84 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (5-15%, 17 wells) | 13080-44 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (6%, 13 wells) | 13081-34 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (6%, 17 wells) | 13082-24 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (8%, 13 wells) | 13083-14 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE One Precast Gel (8%, 17 wells) | 13084-04 | 4-10°C | 10 sheets | 139.00 | Buy |
Product | Cat.No. | Storage | PKG Size | Price(US$) | |
---|---|---|---|---|---|
Bullet PAGE Plus Precast Gel, 5-10%, 13wells | 21789-34 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 5-10%, 17wells | 21790-94 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 5-15%, 13wells | 21791-84 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 5-15%, 17wells | 21792-74 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 5-20%, 13wells | 21793-64 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 5-20%, 17wells | 21794-54 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 7.5-15%, 13wells | 21795-44 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 7.5-15%, 17wells | 21796-34 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 10-20%, 13wells | 21797-24 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 10-20%, 17wells | 21798-14 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 7.5%, 13wells | 21799-04 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 7.5%, 17wells | 21800-54 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 10%, 13wells | 21801-44 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 10%, 17wells | 21806-94 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 12.5%, 13wells | 21807-84 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 12.5%, 17wells | 21811-14 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 15%, 13wells | 21853-74 | 4-10°C | 10 sheets | 139.00 | Buy |
Bullet PAGE Plus Precast Gel, 15%, 17wells | 21854-64 | 4-10°C | 10 sheets | 139.00 | Buy |
