EZVIEW™ Glass Bottom Plate

Culture Plate LB / Assay Plate

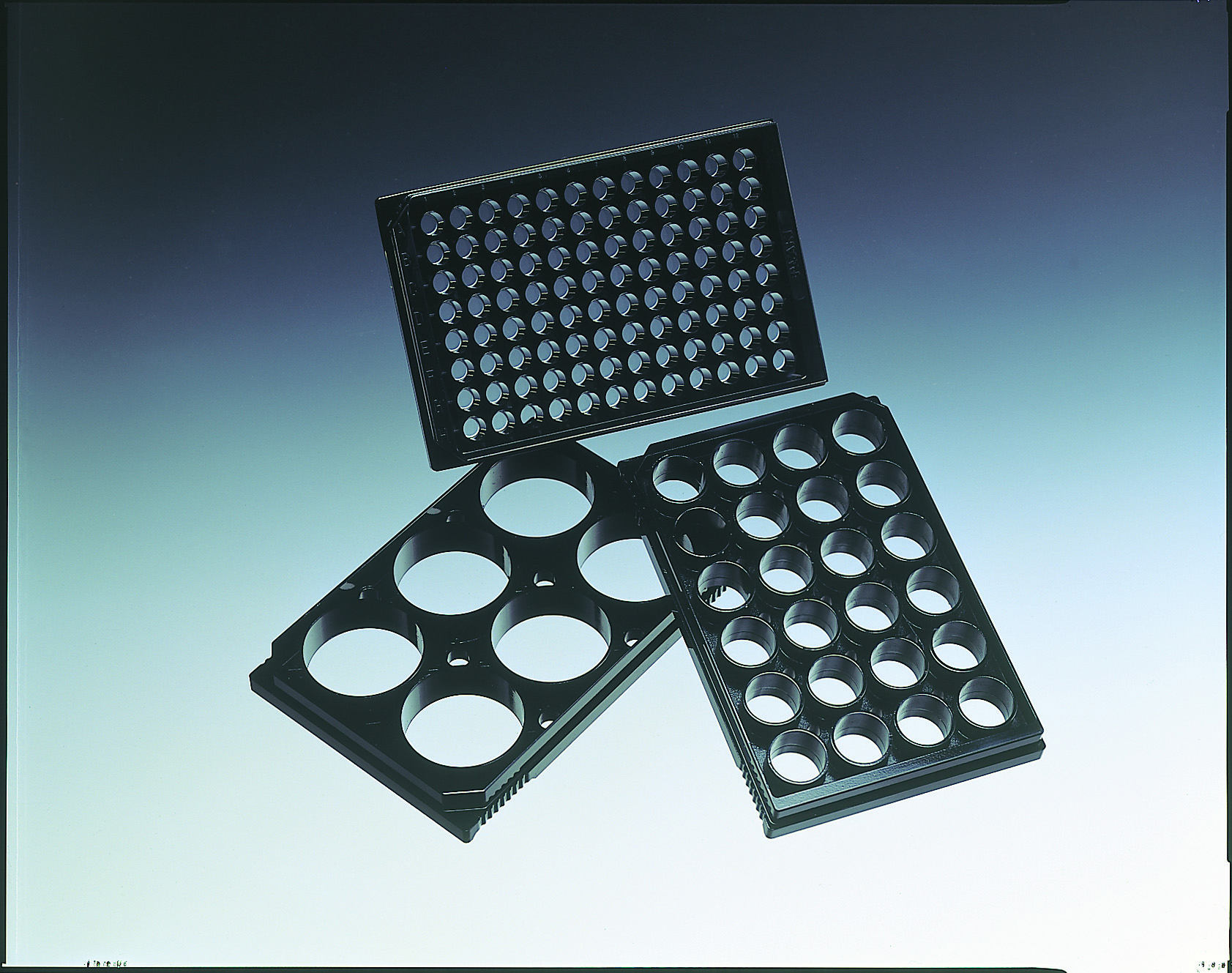

EZVIEW™ Culture Plate LB (Glass Bottom Plate):

Features

● Can obtain clearer images with higher magnification compared to conventional microplates by imaging through a cover glass. This overcomes variations in plate thickness (175 ± 20 μm) in conventional microplates.
● Since the cover glass surface is located close to the microscope stage, these plates are compatible with many microscope models and lenses (distance between culture surface and stage is approximately 0.6 mm).
● The black plate surface is suitable for fluorescence assays and imaging.

Note:
  • Do not use solvents (methanol, ethanol, etc.) that cause adhesives to peel off.
  • Please store and use at temperatures between room temperature and 40 ° C. Glass and plastic may peel due to the differences in expansion coefficients.
  • Cover glass is fixed, and cannot be removed.
  • Cell adhesion may differ from polystyrene containers.

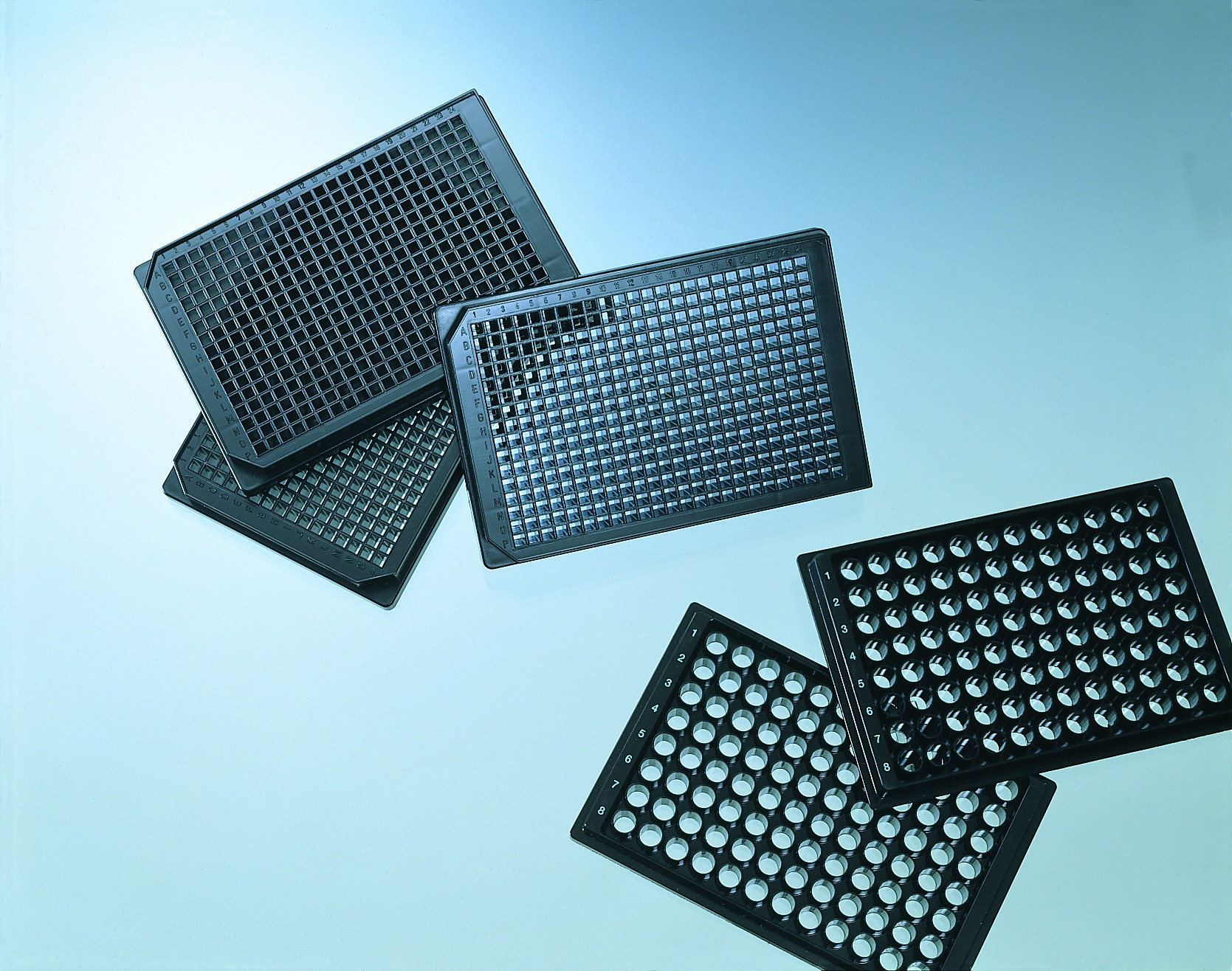

EZVIEW™ Assay Plate (Glass Bottom Plate):

Features

● LOW BASE design: The glass coverslip is positioned ≤0.5mm from the bottom of the plate to minimize the distance between the microscope lens and the imaging target, optimizing suitability for confocal microscopy.
● Low auto-fluorescence:
Compared with polystyrene plates, auto-fluorescence is minimized, optimizing signal to noise ratio.
● No interference:
Black wells that prevents interference between wells.
● Bulk packaged, non-sterile

Note:
  • A thin cover glass is fixed on the bottom of the plate, take care when handling to avoid injury.
  • Non autoclavable.
  • Do not use solvents (methanol, ethanol, etc.) that cause adhesives to peel off.
  • Please store and use at temperatures between room temperature and 40 ° C. Glass and plastic may peel due to the differences in expansion coefficients.
  • Cover glass is fixed, and cannot be removed.

Imaging of Multicolor Immunofluorescence Staining with Confocal Microscope System

Ordering Information

EZVIEW Assay Plate
Product Cat.No. Storage PKG Size Price(US$)
EZVIEW Assay Plate, 96-well 5882-096 Room Temp. 10 260.00 Buy
EZVIEW Assay Plate, 384-well 5883-384 Room Temp. 10 320.00 Buy
EZVIEW Culture Plate
Product Cat.No. Storage PKG Size Price(US$)
EZVIEW Culture Plate, 6-well 5816-006 Room Temp. 10 280.00 Buy
EZVIEW Culture Plate, 24-well 5826-024 Room Temp. 10 290.00 Buy
EZVIEW Culture Plate, 96-well 5866-096 Room Temp. 10 300.00 Buy
