COSMOSIL 1.8PBr (Sub-2 micron porous silica for UHPLC)

High‑speed separation with UHPLC (1.8 μm particles) / Pentabromobenzyl group stationary phase

Features
  • Retain hydrophilic compounds with reversed‑phase chromatography
  • Significantly improved separation compared to ODS columns
  • High‑speed separation with UHPLC (1.8 μm particles)

01_Phase Structure.png

Material properties

Packing Material1.8PBr
Silica Gel Fully Porous Spherical High-Purity Silica Surface Area (m2/g) 340
Particle Size (μm) 1.8 Bonded Phase Pentabromobenzyl group
Pore Size (nm) 12 Bonding Type Monomeric

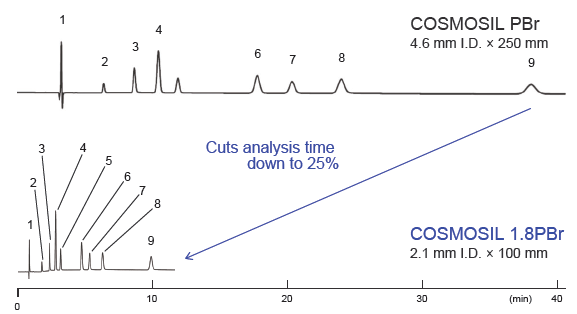

Rapid separation of hydrophilic compounds using UHPLC

Using COSMOSIL PBr, the analysis of 9 purine nucleoside metabolites, including uric acid and allantoin, required approximately 40 minutes. Changing to COSMOSIL 1.8PBr, packed with smaller particles, allowed the analysis to be completed in approximately 10 minutes with equivalent separation.

Conditions
Column size 4.6 mm I.D. × 250 mm Temperature 30°C
Mobile phase Methanol / 0.1% Formic acid aq. = 10 / 90 Detection UV 240 nm
Flow rate PBr ; 1.0 mL/min, 1.8PBr ; 0.4 mL/min Inj. Vol 1.0 μL

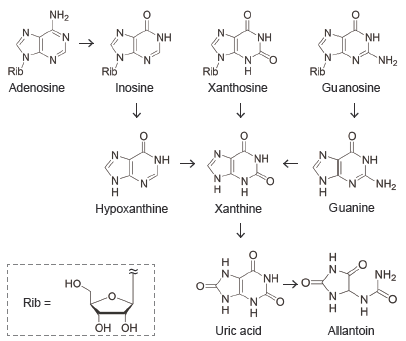

Sample
  1. Allantoin
  2. Guanine
  3. Hypoxanthine
  4. Uric acid
  5. Xanthine
  6. Adenosine
  7. Inosine
  8. Guanosine
  9. Xanthosine

Hydrophilic compound retention by interaction with bromine

COSMOSIL PBr columns can be used in the same reversed‑phase mode as ODS columns; however, due to the high polarizability of bromine atoms, it exhibits unique retention and separation behavior. This is attributed to dispersion interactions and the recently recognized halogen bonding, which differ from conventional ODS columns. These interactions occur between highly polarizable atoms and π-electrons, as well as oxygen or nitrogen atoms possessing lone electron pairs. As a result, PBr columns can retain hydrophilic compounds that are difficult to retain on ODS columns, and enable the analysis of difficult compounds.



Differences in separation characteristics due to stereoselectivity compared to ODS columns

Differences in separation characteristics compared to PFP columns

Applications

Note on Connector Type

Related Resources

Ordering Information

Product Cat.No. PKG Size Price
COSMOSIL 1.8PBr Packed Column (2.1 mmI.D. x 30 mm) 22739-41 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (2.1 mmI.D. x 50 mm) 22740-01 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (2.1 mmI.D. x 75 mm) 22741-91 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (2.1 mmI.D. x 100 mm) 22742-81 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (2.1 mmI.D. x 150 mm) 22743-71 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (3.0 mmI.D. x 50 mm) 22744-61 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (3.0 mmI.D. x 100 mm) 22745-51 1 pkg 924.00
Buy
COSMOSIL 1.8PBr Packed Column (3.0 mmI.D. x 150 mm) 22746-41 1 pkg 924.00
Buy
